Temperature and Humidity Sensor Module - AM1001/AMT1001

• AM1001 Single wet
• AMT1001 Integrated temperature and humidity
• Humidity Range: 20 ~ 90%RH
• Humidity Accuracy: ±5%RH
• Humidity Repeatability: ±1%RH
• Temperature range​: 0 ~ 60°C
• Supply voltage: 4.75 - 5.25V
• Power Consumption: 2.0mA​
• Output: 0~3V

  • Model Number: AM1001/AMT1001
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

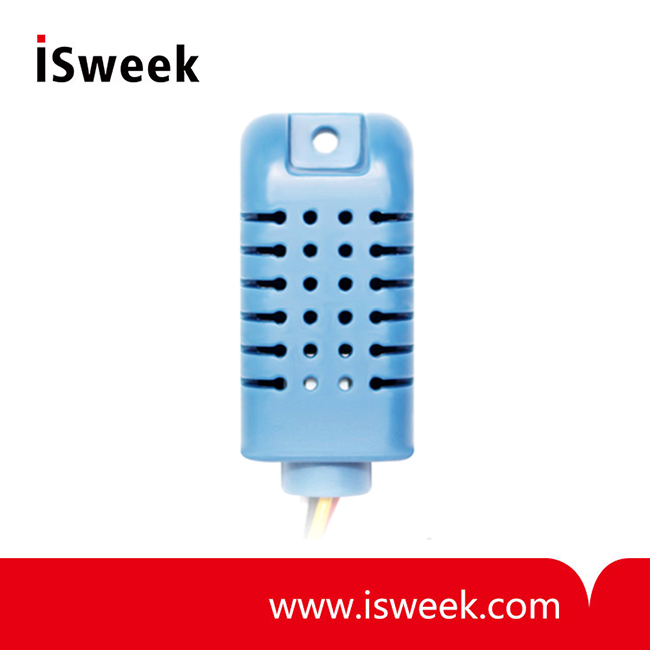

  • Temperature and Humidity Sensor Module

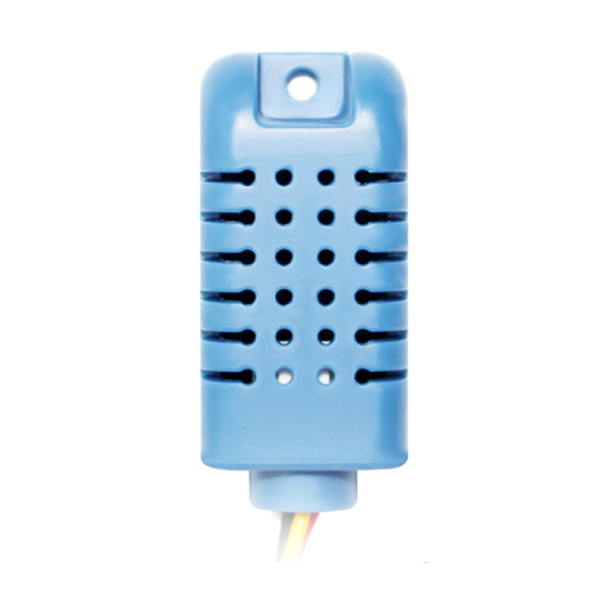

  • Temperature and Humidity Sensor Module
Mouse over image to zoom

Product Specification

AM1001/AMT1001 Temperature and Humidity Sensor Module Product Overview
AM1001 / AMT1001 is humidity resistance type temperature and humidity sensors, which AM1001 is a single wet, AMT1001 is integrated temperature and humidity sensor; sensor signals using analog voltage output; This module has high accuracy, high reliability, consistency, and has been with temperature compensation to ensure long-term stability, ease of use and low price and other characteristics, especially suitable for the quality, cost requirements more demanding businesses.

AM1001/AMT1001 Temperature and Humidity Sensor Module Applications
HVAC air conditioners, humidifiers, dehumidifiers, communication, atmospheric environmental monitoring, industrial process control, agriculture, measuring instruments and other applications.

AM1001/AMT1001 Temperature and Humidity Sensor Module Product Highlights
Low power consumption, small size, with temperature compensation, calibration microcontroller linear output, ease of use, low cost, completely interchangeable, long distance signal transmission, precise calibration.

AM1001/AMT1001 Temperature and Humidity Sensor Module Product Selection

Product Model
 Product Type
 DC voltage
 Output
 Specifications
AM1001
 Resistive
 4.75~5.25V DC
 0~3V
 Single wet
AMT1001
 Resistive
 4.75~5.25V DC
 0~3V
 Integrated temperature and humidity
Product Description: AM1001 single wet, AMT1001 for temperature and humidity of a body, a common specification, except single wet and humid merely a body temperature increases, other features like, then not be repeated.

AM1001/AMT1001 Temperature and Humidity Sensor Module Sensor Performance
Relative humidity
Parameters
 Conditions
 min
 typ
 max
 unit
Range
20
90 %RH
Accuracy
 25°C
±5
%RH
Repeatability

±1
%RH
Interchangeability
Completely interchangeable
Response time
 1/e(63%)
<5
S
Hysteresis

±0.3
%RH
Drift
 Typical values
<0.5
%RH/yr

Temperature
NTC10K temperature sensor is a thermistor. Temperature sensor parameters shown in Table 3.
Specification
Rated zero power
resistance (R25)
B
(K)
Dissipation
factor (mw/°C)
Thermal time
constant (S)
Rated Power
(mw)
Operating Temperature
Range (°C)
SNE103B13435AS150EF
 10KΩ
 3435
 ≥2.5
 ≤18
 150 -40~125

AM1001/AMT1001 Temperature and Humidity Sensor Module Electrical Characteristics
Parameters
 Conditions
 min
 typ
 max
 unit
Supply voltage
4.75 5.0 5.25 V
Humidity voltage output range
0
3 V
Power Consumption
 Measurement
2.0
mA
Humidity sampling period

3
S
Humidity measurement range
20
90 %RH
Temperature range
0
60 °C
Temperature measurement range
 NTC10K
 0
60 °C
