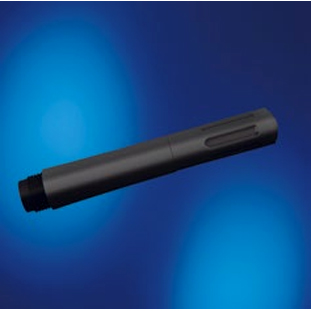

Temperature And Humidity Sensor - TFF20

Dimensions: Length 85 mm, Ø 12 mm
Weight: Approx. 50g
Protection: Polycarbonate / IP65
Permitted operation temp.: 0...50°C
Permitted humidity: 0...100% RH
Relative Humidity Measurement range: 0… 100% RH
Relative Humidity Accuracy: ± 2 % (0 … 90 %), ± 3 % (90 … 100 %) RH

  • Model Number: TFF20
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Temperature And Humidity Sensor
Mouse over image to zoom

Product Specification

Digital TFF20

Reference measurement in service and maintenance, suitable for measurements in air conditioning and heating industry segments.


Technical Data Dimensions Length 85 mm, Ø 12 mm
Weight Approx. 50g
Protection Polycarbonate / IP65
Permitted operation temp. 0...50°C
Permitted humidity 0...100% RH
Storage temperature -20...60°C
Storage humidity 20...80% RH
Relative Humidity Measurement range 0… 100% RH
Accuracy ± 2 % (0 … 90 %), ± 3 % (90 … 100 %) RH
Resolution 0.01% RH
Principle Capacitive
Temperature Measurement range - 40 … 80 ° C
Accuracy (20°C) ± 0.1°C
Accuracy (0...40°C) ± 0.2°C otherwise ± 0.5°C
Resolution 0.01°C
Principle PT1000, Class A, DIN EN 60751
Absolute Humidity Measurement range 0...300g/m3
Unit g/m3
Dew Point Temp. Measurement range -40...80°C
Mixing Ratio Measurement range 0...550g/kg
Compatibility XA1000, XP200, OPUS20E
Accessories Stainless steel sinter cap
Calibration salt 11,3% RH
Calibration salt 32,8% RH
Calibration salt 52,9% RH
Calibration salt 75,3% RH
Calibration salt 90,1% RH
Calibration adapter
