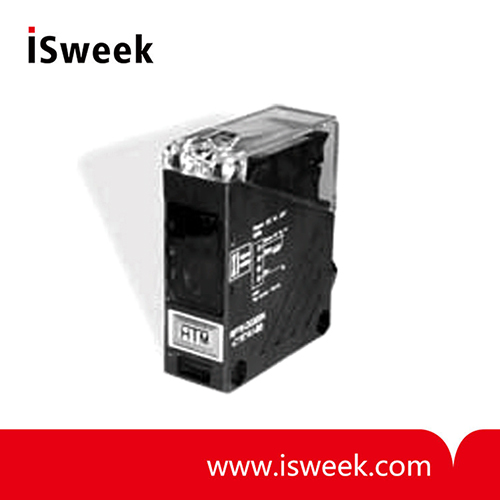

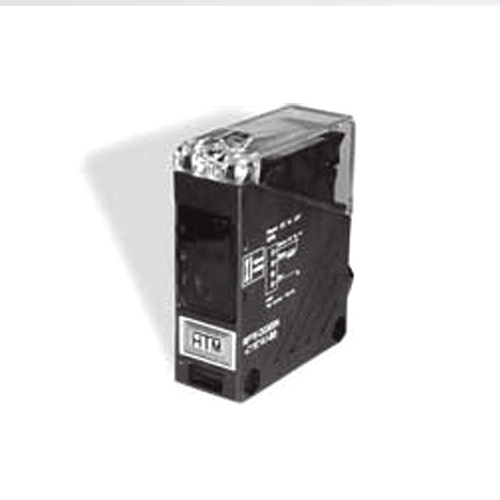

Terminal (Conduit) Mount Photoelectric Sensor - RP76 Series

• Back or Bottom Mounting Option
• Universal Power Supply
• Built-in Timer Modes
• Through Beam: 28m
• Power Supply: DC: 10-30 VDC AC: 20-250 VAC
• Mechanical Protection: IP66 / NEMA 4​
• Operating Temperature: -25°C to +55°C (-13°F to 131°F)​

  • Model Number: RP76 Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Terminal (Conduit) Mount Photoelectric Sensor
  • Terminal (Conduit) Mount Photoelectric Sensor
Mouse over image to zoom

Product Specification

RP76 Series Terminal (Conduit) Mount Photoelectric Sensor Description
• Back or Bottom Mounting Option
• Universal Power Supply
• Built-in Timer Modes


Modes
Ranges
Through Beam
28m
Retroreflective
10m
Diffuse with Background Suppression
300mm


RP76 Series Terminal (Conduit) Mount Photoelectric Sensor


Through-beam
Diffuse
Retroreflective (Polarized)
DC Models
Emitter
RP76-T028MD-EY9T4L


NPN - Timing Delay
RP76-T028MN-CY9T4U-T
RP76-D0300N-CY9T4U-BT
RP76-L010MN-CY6T4U-TP
PNP - Timing Delay
RP76-T028MP-CY9T4U-T
RP76-D0300P-CY9T4U-BT
RP76-L010MP-CY6T4U-TP
AC Models
Emitter
RP76-T028MA-EY9T4L


Relay SPST - Timing Delay
RP76-T028MR-CY9T4L-T
RP76-D0300R-CY9T4L-BT
RP76-L010MR-CY6T4L-TP
Technical Data
Operating Range
28m (91.8 ft.)
0.3m (11.8 in.)
10m (32.8ft.)
Light Emission
880nm Infrared LED
660nm Red LED
Power Supply
DC: 10-30 VDC AC: 20-250 VAC
Current Consumption
DC: <35 mA (no load) AC: <2 VA
Time Options
No Delay, On Delay, Off Delay, One-shot (for Models With Timing Delay)
Time Settings
Adjustable, 0.1...15s (for Models with Timing Delay)
Indicator LEDs
Green: Power, Yellow: Output, Red: Margin / SCP
Housing Material
Glass fiber reinforced plastic
Lens Material
Acrylic
Mechanical Protection
IP66 / NEMA 4
Circuit Protection
Reverse polarity protected (DC Models also have outputs short circuit and over current protected)
Operating Temperature
-25°C to +55°C (-13°F to 131°F)
Storage Temperature
-40°C to +55°C (-40°F to 131°F)
Reference Standard
IEC 60947-5-2
