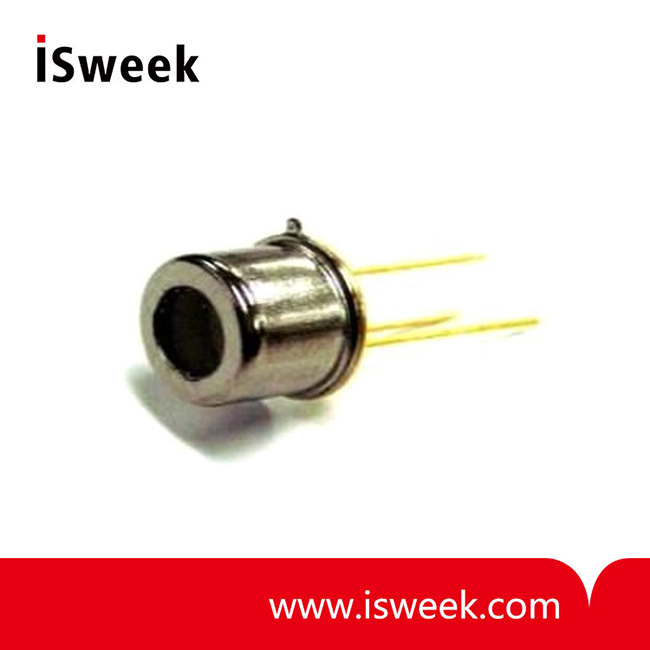

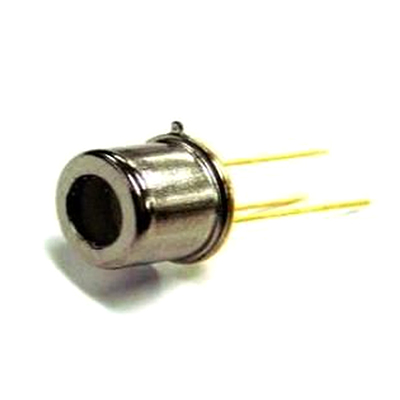

UV-B Sensor - GUVB-T21GD-U

-Chip size: 3.4mm, TO 39 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Responsivity: 0.13A/W
- Spectral Detection Range: 220~320nm
- Active area: 6.894mm2

  • Model Number: GUVB-T21GD-U
  • Data Sheet: Date Sheet File
Quantity:
- +
  • UV-B Sensor
  • UV-B Sensor
Mouse over image to zoom

Product Specification

1. GUVB-T21GD-U UV Sensor Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current

2. GUVB-T21GD-U UV Sensor Applications
UV-B Lamp Monitoring
UV-B LED Monitoring

3. GUVB-T21GD-U UV Sensor Outline Diagrams and Dimensions


4. GUVB-T21GD-U UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.001µ~100m W/cm2
Soldering Temperature: 260℃

5. GUVB-T21GD-U UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 90nA
Photo Current(Typ.): 7.4 µA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.13A/W
Spectral Detection Range: 220~320nm
Active area: 6.894mm2
