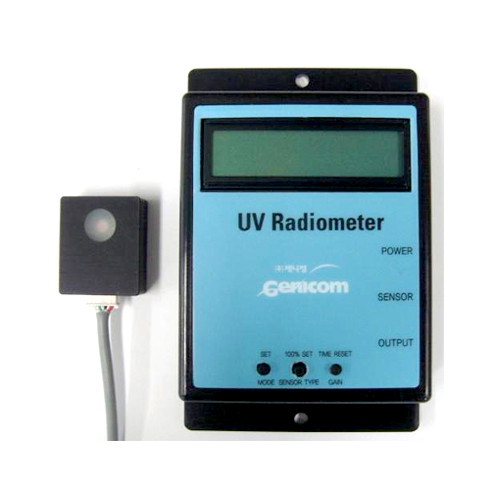

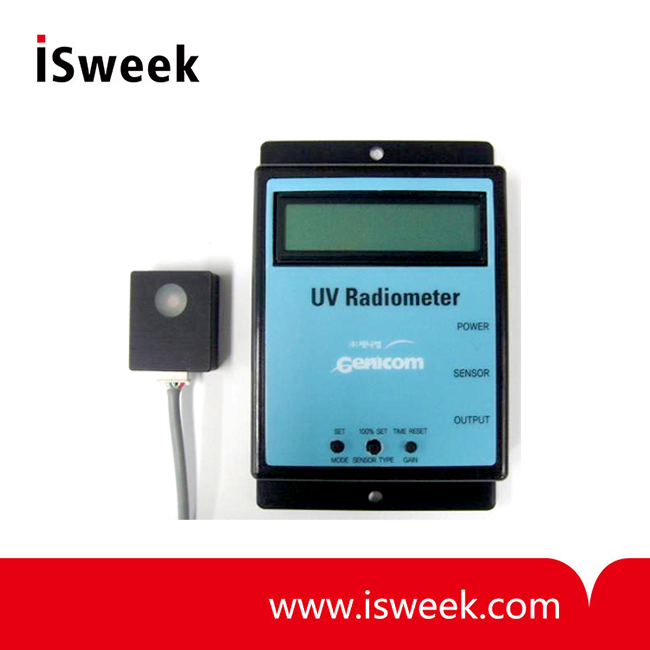

UV Radiometer 1.0 - GUVx-T1xGS-LA5

- Fixing method: 2 Fixing Hole
- DC 9V 300 ㎃ (AC220V 50/60 ㎐ Adapter)
- Operating Temperature: -15~65°C
- Power Consumption: Typical 0.13A
- Detection Range:
GUVV-T10GS-LA5: 230~395nm
GUVB-T11GS-LA5: 220~320nm
GUVC-T10GS-LA5: 220~280nm

  • Model Number: GUVx-T1xGS-LA5
  • Data Sheet: Date Sheet File
Quantity:
- +
  • UV Radiometer 1.0
  • UV Radiometer 1.0
Mouse over image to zoom

Product Specification

GUVx-T1xGS-LA5 UV Radiometer 1.0 Description
 It inform the UV power of UV source through the LCD using UV Sensor. You can choose the sensor part by your application.

GUVx-T1xGS-LA5 UV Radiometer 1.0 Applications
  UV Curing

GUVx-T1xGS-LA5 UV Radiometer 1.0 Constitution
 Display, Adapter, Sensor Probe, Connection Cable, Output Line

GUVx-T1xGS-LA5 UV Radiometer 1.0 Case dimensions

Type
Width (mm)
Length (mm)
Height (mm)
Window (mm)
Weight (g)
Connection Line (m)
Body
 Remark
Display 88 137 30 - 155 - -
Probe
30
36 16 12 40 5  Al-60


Information of UV Radiometer GUVx-T1xGS-LA5

Parameter
Value
Unit
Remark
Min.
Typ.
Max.
Operating Temperature
-15

65 °C
Power Consumption

0.13

A
Detection Range
GUVV-T10GS-LA5
230
395
nm
10% of Max
GUVB-T11GS-LA5
220
320 nm
10% of Max
GUVC-T10GS-LA5
220
280 nm
10% of Max

Connection
1. Main Power
   - DC 9V 300mA (AC220V 50/60Hz Adapter)
2. Detection Power Range
   - Standard : Max. 100mW/cm2
   - Option : Max. 10mW/cm2 , Max. 1000mW/cm2
3. Output
   It depends on UV power of UV source.
   1) Voltage : 0 ~ 5 V, 0.1A Max.
   2) Current : 4 ~ 20 mA, 5V
