UV Radiometer 2.0 - GUVx-T1xGS2-I8LW10

- Water Environments (10Bar)
- Output of Display : Relay, 4-20mA Current
- Detection Power Range: 0~100 mW/cm²
- Power Consumption: max 5VA
- Detection Wavelength Range:
GUVV-T11GS2-I8LW10: 230~395nm
GUVB-T12GS2-I8LW10: 220~320nm
GUVC-T11GS2-I8LW10: 220~280nm

  • Model Number: GUVx-T1xGS2-I8LW10
  • Data Sheet: Date Sheet File
Quantity:
- +

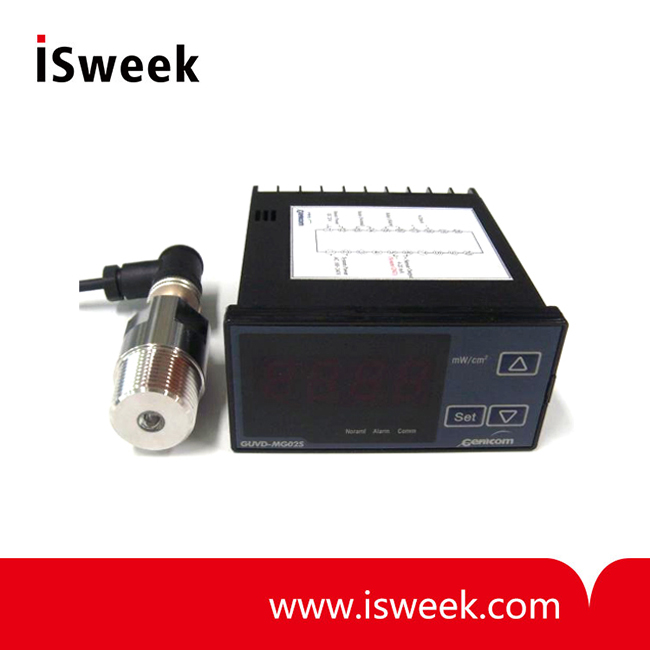

  • UV Radiometer 2.0

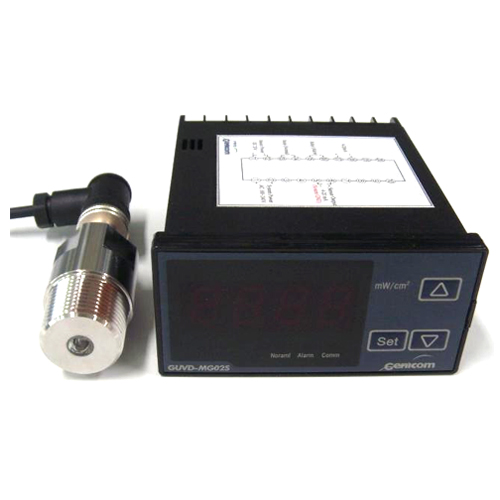

  • UV Radiometer 2.0
Mouse over image to zoom

Product Specification

GUVx-T1xGS2-I8LW10 UV Radiometer 2.0 Description
 Water Environments (10Bar), Display : Absolute Power, Output of Display : Relay, 4-20mA Current

GUVx-T1xGS2-I8LW10 UV Radiometer 2.0 Applications
 UV Purification (Water)
 Water treatment

GUVx-T1xGS2-I8LW10 UV Radiometer 2.0 Constitution
Display, Sensor Probe, 5m Cable


GUVx-T1xGS2-I8LW10 UV Radiometer 2.0 Case dimensions

Thread/Length for Mounting
Diameter (mm)
Window (mm)
Wrench Size (mm)
Length (mm)
Weight (g) Case Material
PT3/4" /16mm 30 7 26 62 200 STS 316-L


GUVx-T1xGS2-I8LW10 UV Radiometer 2.0 Absolute Maximum Ratings

Parameter
Value
Unit
Remark
Min.
Typ.
Max.
Operating Temperature
-30

85
°C
Sensor Probe
0

50 °C
Display
Power Consumption


5
VA


GUVx-T1xGS2-I8LW10 UV Radiometer 2.0 Electro-Optical Characteristics (at 25°C)

Parameter
Value
Unit
Remark
Min.
 Typ.
Max.
Detection Wavelength Range
GUVV-T11GS2-I8LW10
230
395 nm

GUVB-T12GS2-I8LW10
220
320 nm

GUVC-T11GS2-I8LW10
220
280 nm

Detection Power Range
0

100
mW/cm2

* Maximum of detection power : 20mW/cm2 (Option), 100mW/cm2 (Standard), 1000mW/cm2 (Option)
