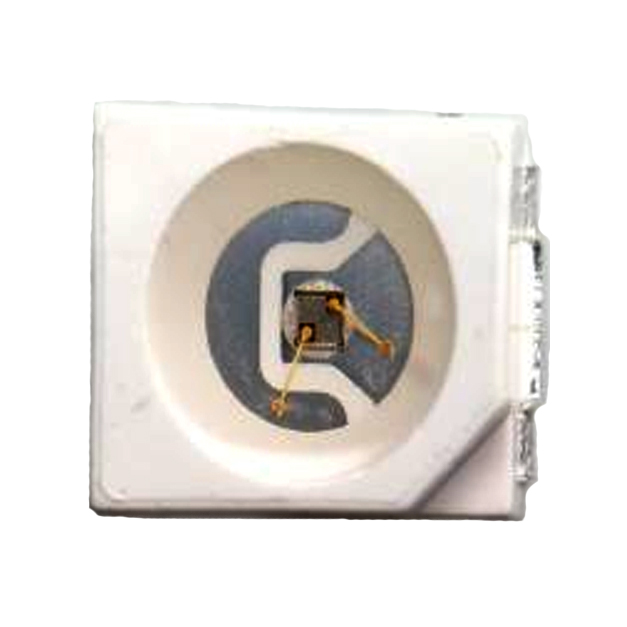

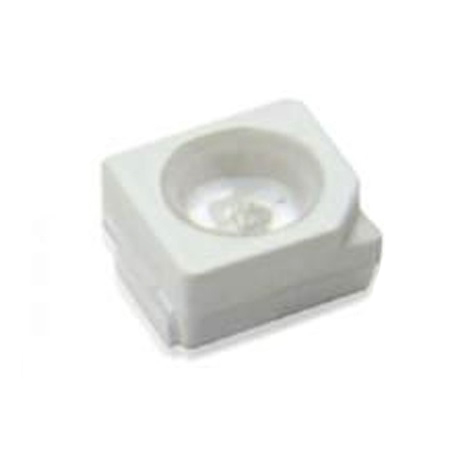

UV / Visible Sensor - GVBL-S12SD

- SMD3528 with Si-encapsulant
- Dark Current(Max.): 1nA
- Responsivity: 0.68A/W
- Spectral Detection Range: 345~450nm
- Indium Gallium Nitride Based Material
- PN-type Photodiode
- Photovoltaic Mode Operation
- High Responsivity & Low Dark Current

  • Model Number: GVBL-S12SD
  • Data Sheet: Date Sheet File
Quantity:
- +
  • UV / Visible Sensor
  • UV / Visible Sensor
  • UV / Visible Sensor
Mouse over image to zoom

Product Specification

1. GVBL-S12SD UV / Visible Sensor Features

SMD3528 with Si-encapsulant
Indium Gallium Nitride Based Material
PN-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current


2. GVBL-S12SD UV / Visible Sensor Applications

UV LED Monitoring (385, 405nm, etc.)
Blue LED Monitoring
UVA Lamp Monitoring
UV Curing


3. GVBL-S12SD UV / Visible Sensor Outline Diagrams and Dimensions



4. GVBL-S12SD UV / Visible Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Soldering Temperature: 260℃

5. GVBL-S12SD UV / Visible Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current (Typ.): 90nA (UVA (352nm), 1mW/cm2);
                                 790nA (405nm LED, 1mW/cm2)
Responsivity: 0.68A/W
Spectral Detection Range: 345~450nm
