AXCA Series ASCX Compatible Amplified Pressure Sensors - 15 PSI-A-4V-ASCX

• Supply Voltage: +4.5 to +5.5 Vdc
• Lead Soldering Temperature (2-4 sec.): 250 °C
• Quiescent Current: 7.5 mA
• Compensated Temperature: 0 to 70°C
• Operating Temperature: -25 to 105°C
• Storage Temperature: -55 to 125°C
• Humidity Limits (non condensing): 0 to 95% RH

  • Model Number: 15 PSI-A-4V-ASCX
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

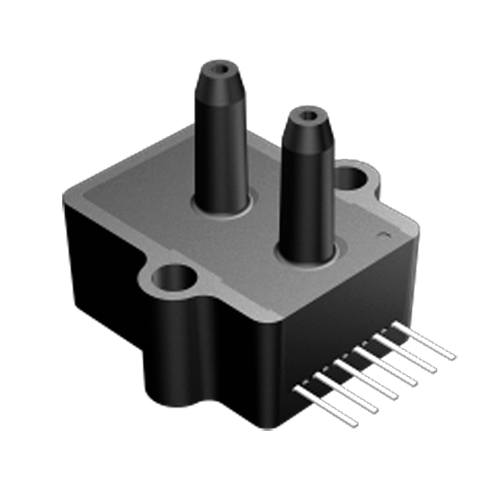

  • AXCA Series ASCX Compatible Amplified Pressure Sensors
  • AXCA Series ASCX Compatible Amplified Pressure Sensors
Mouse over image to zoom

Product Specification

ASCX Series Compatible Pressure Sensors
Compatible to Sensym ASCX Series

ASCX Series Compatible Pressure Sensors General Description
The Amplified line of middle pressure sensors is based upon a proprietary package technology to reduce errors. This model provides a ratiometric 4.5-volt output span with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with noncorrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

ASCX Series Compatible Pressure Sensors Features
• 5 Vdc Supply
• High Level Voltage Output
• Ratiometric 4.5 V Span
• Temperature Compensated
• Calibrated Zero and Span
• MULTIPLE Pressure Ranges

ASCX Series Compatible Pressure Sensors Applications
• Medical Instrumentation
• Environmental Instrumentation
• HVAC Instrumentation
• Pneumatic Controls

AXCA Series ASCX Compatible Pressure Sensors

Maximum Ratings
Environmental Specifications
Supply Voltage, Vs
 +4.5 to +5.5 Vdc
 Compensated Temperature
 0 to 70°C
Lead Soldering Temperature (2-4 sec.)
 250 °C
 Operating Temperature
 -25 to 105°C
Quiescent Current
 7.5 mA
 Storage Temperature
 -55 to 125°C


Humidity Limits (non condensing)
 0 to 95% RH

ASCX Series Compatible Pressure Sensors Pressure Ranges
Part Number
 Operating Pressure
 Proof Pressure
 Burst Pressure
1 PSI-D-4V-ASCX
 0 - 1 PSID
 5 PSI
 10 PSI
5 PSI-D-4V-ASCX
 0 - 5 PSID
 15 PSI
 30 PSI
15 PSI-D-4V-ASCX
 0 - 15 PSID
 45 PSI
 75 PSI
15 PSI-A-4V-ASCX
 0 - 15 PSIA
 45 PSI
 75 PSI
30 PSI-D-4V-ASCX
 0 - 30 PSID
 100 PSI
 150 PSI
30 PSI-A-4V-ASCX
 0 - 30 PSIA
 100 PSI
 150 PSI
100 PSI-D-4V-ASCX
 0 - 100 PSID
 150 PSI
 150 PSI
100 PSI-A-4V-ASCX
 0 - 100 PSIA
 150 PSI
 150 PSI

Performance Characteristics for 1/5 PSI-D-4V-ASCX
Parameter
 Minimum
 Nominal
 Maximum
 Units
Output Span
 4.43
 4.50 4.57 Volt
Span Shift (0 °C to 70 °C)
 - ±0.2
 ±1.5
 %Span
Offset Voltage @ zero pressure
 0.18
 0.25
 0.32
 Volt
Offset Shift (0 °C to 70 °C)
 - ±0.5
 ±1.5
 %Span
Combined Linearity and Hysteresis Error
 - ±0.1
 ±0.5
 %Span
Repeatability
 - ±0.2
 ±0.5
 %Span
Response Time
 - 100
 - uSec

Performance Characteristics for 15/30/100 PSI-x-4V-ASCX
Parameter
 Minimum
 Nominal
 Maximum
 Units
Output Span
 4.45
 4.50
 4.55
 Volt
Span Shift (0 °C to 70 °C)
 - ±0.2
 ±1.0
 %Span
Offset Voltage @ zero pressure
 0.20
 0.25
 0.30
 Volt
Offset Shift (0 °C to 70 °C)
 - ±0.5
 ±1.0
 %Span
Combined Linearity and Hysteresis Error
 - ±0.1
 ±0.5
 %Span
Repeatability
 - ±0.2
 ±0.5
 %Span
Response Time
 - 100
 - uSec
