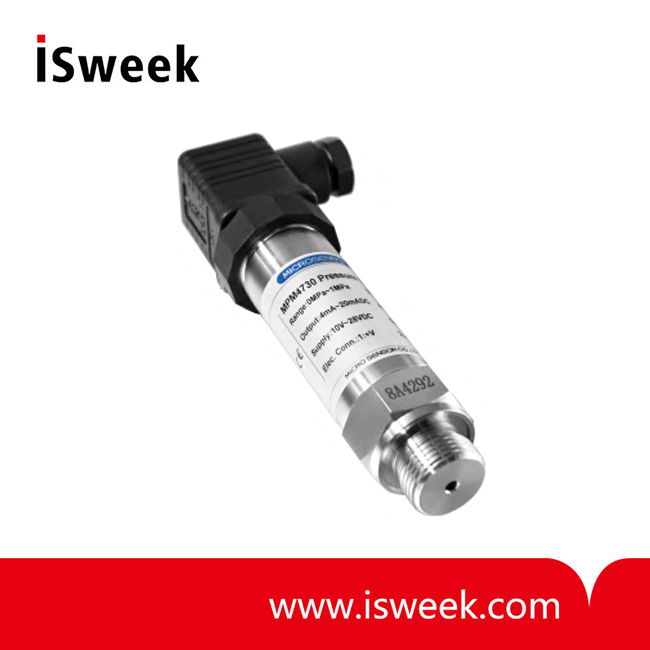

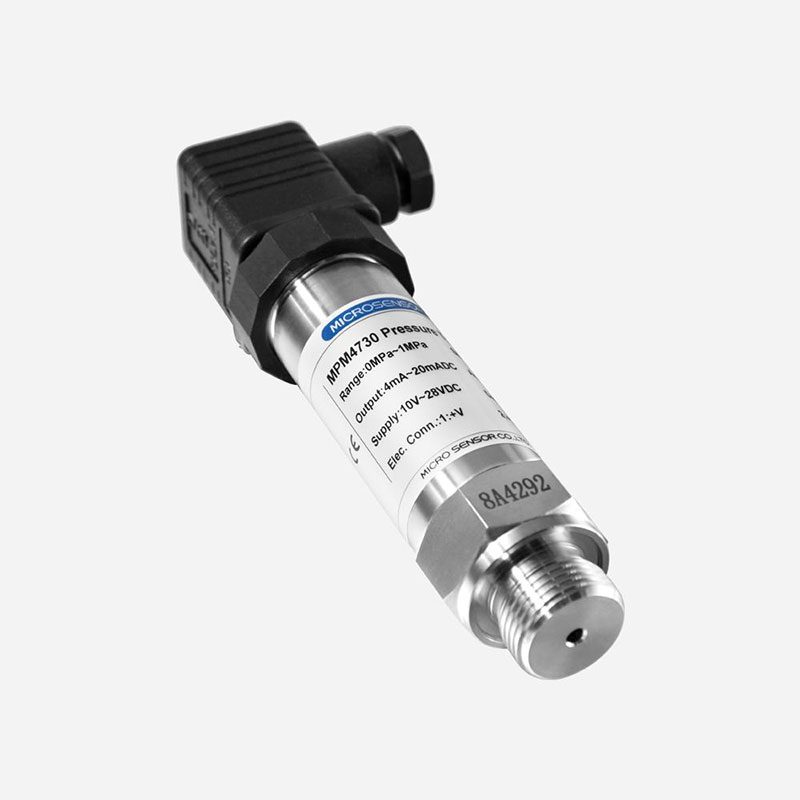

Digital RS485 HART Pressure Transmitter - MPM4730

• Output: 4~20mA, RS485-Customised, RS485-Modbus, HART
• Pressure Range: ≤35bar, ≤400bar, 700bar
• Accuracy: ≤0.15%FS
• Other Options: Display, DNV
• Pressure Type: Gauge & Absolute
• Diameter: Φ27mm

Model Number: MPM4730
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MPM4730 Digital RS485 HART Pressure Transmitter Introduction：

MPM4730 pressure transmitter is the highly accurate and stable intelligent pressure transmitter. It uses digital temperature compensation, non-linearity correction technics and the most advanced transmitter production technique, the whole product has compact size, high accuracy, light weight and wider pressure range, can be used for flow pressure precise measurement. The product will instead the 2-wire working 4mA~20mA DC output analogous signal.

MPM4730 Digital RS485 HART Pressure Transmitter Specification：

Basic range

(bar)

-1

3.5

100

200

350

600

1000

Overpressure

(bar)

-1

1.5

100

150

300

500

900

1100

The min.shrinked available pressure range is 1/5 of basic range;For the pressure range between min.range and max.range, but not indicated in the above table, we enlarge the above basic pressure range to produce (overpressure unavailable);
