Film-Sealed NTC Thermistor Series Temperature Sensors - MF5E

• Insulated membrane packaged,with fast thermal induction and high sensitivity.
• Good stability and high reliability.
• Good insulation.
• High precision of resistance value.
• Safe for use.
• Small volume,light weight and convenient for installing in narrow enviroment.

  • Model Number: MF5E
  • Data Sheet: Date Sheet File
Quantity:
- +

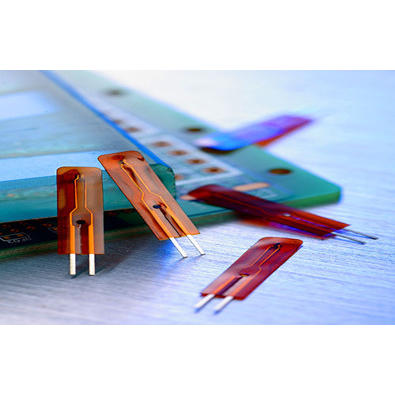

  • Film-Sealed NTC Thermistor Series Temperature Sensors

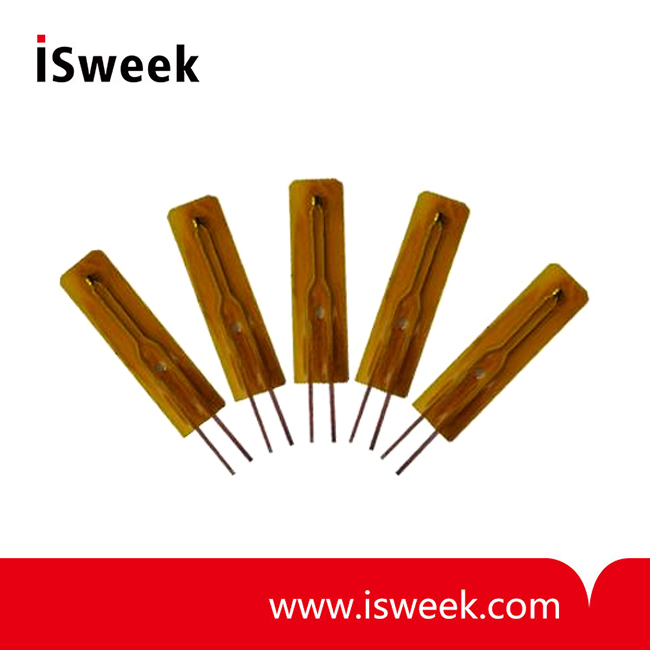

  • Film-Sealed NTC Thermistor Series Temperature Sensors
  • Film-Sealed NTC Thermistor Series Temperature Sensors
Mouse over image to zoom

Product Specification

MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Features

• Insulated membrane packaged,with fast thermal induction and high sensitivity.
• Good stability and high reliability.
• Good insulation.
• High precision of resistance value.
• Safe for use.
• Small volume,light weight and convenient for installing in narrow enviroment.



MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Purpose
• Temperature measurement.
• Temperature control.
• Temperature compensation.



MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Applicable scope
• Temperature, printer, household appliances.


MF5E Film-Sealed NTC Thermistor Series Description of Product Types and Specifications

(1) KPD — Abbreviations for KePengDa.
(2) MF — Indicates negative temperature coefficient thermistor.
(3) 5E — Temperature measurement film thermistor.
(4) 103 — Nominal resistance of thermistor, e.g. 103 indicates that the nominal resistance of the thermistor is 10*103 (Ω).
(5) F — Resistance error (precision) of thermistor, e.g. F indicates the thermistors resistance value error (precision) is ± 1%.
(6) 338 — B25/50 value of thermistor, e.g. 338 indicates the material factor B25/50 value of the resistance is 338*10K.
(7) F — B25/50 error (precision) of thermistor, e.g. F indicates B25/50 error (precision) is ±1%.
(8) 25 — pin length, e.g. 25 indicates the type of pin length is 25mm.
 Note: R25 precision: F (±1%), G (±2%), H (±3%), J (±5%), K (±10%).
          B25/50 precision: F (±1%), G (±2%), H (±3%).


MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Main Technical Parameters

Parameters  Parameter range  Test conditions
 R25 (nominal resistance value)  10 kΩ ~ 100 k  Constant temperature 25 ℃± 0.05 ℃
 R25 Premissible variance (%)  ± 1, ± 2, ± 3, ±5  Constant temperature 25 ℃± 0.05 ℃
 B25/50 (material coefficient)
 (thermal-sensitivity index)
 3300 ~ 4200K

 Constant temperature 25 ℃± 0.05 ℃

 Constant temperature  50 ℃± 0.05 ℃
 B25/50 value premissible variance(%)  ± 1, ± 2

 Constant temperature 25 ℃± 0.05 ℃

 Constant temperature  50 ℃± 0.05 ℃
 δ(dissipation coefficient)  ≥ 0.7 mw/ ℃  Static in still air
 T(thermal time constant)  ≤ 5 S  Static in still air
 TA(working temperature)  -30 ℃ ~ +120 ℃
 PN(rated power)  ≤ 25 mw  Within working temperature
