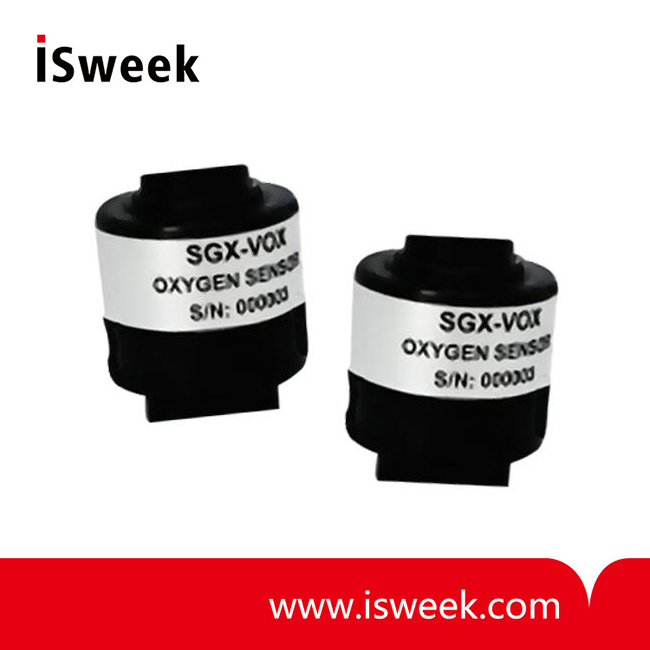

Oxygen Sensor - SGX-VOX

0-100% Oxygen (O2) Sensor with on board temperature compensation.Optimized for ventilators.

  • Model Number: SGX-VOX
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart
  • Oxygen Sensor
Mouse over image to zoom

Product Specification

PERFORMANCE

Output signal

9-13mV in Air*

Zero current (offset)

<0.1% O2

T90 response time

< 5 seconds

T99.5 response time

<50 sec

Measurement Range

0-100% O2

Linearity

Linear

Temp. Compensation（0-40℃）

< 2% O2

Recommended Load Resistor

min 10k Ohms

* measured in standard temperature and pressure（20℃, 50%RH and 1atm）



OPERATING CONDITIONS

Temperature Range

-20℃ to +50℃

Pressure Range

500 to 2000 mbar

Operating Humidity Range

0% to 99% RH（non condensing）



LIFETIME

Long Term Output Drift

<5% per annum

Recommended Storage Temp

0℃ to 20℃

Expected Operating Life

375000% O2hrs at 20℃



OUTLINE

All dimensions are in mm

All tolerances are ±0.15mm
