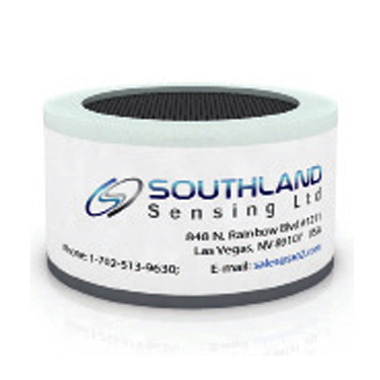

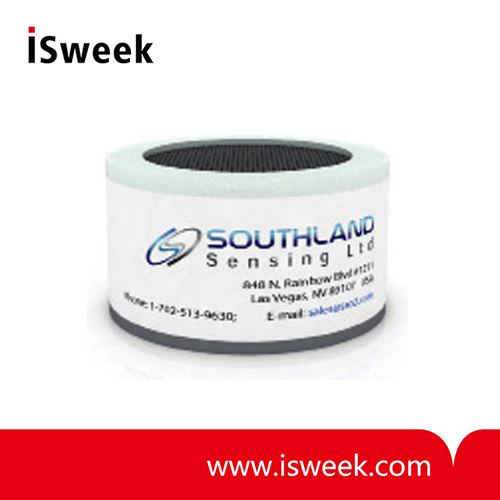

Percent Oxygen Sensor (O2 sensor) - PO2-2x

• Sensor Technology: Micro Fuel Cell
• Signal Output: 105- 260uA
• Measuring Range: 0 - 100 Percent
• Response Time T90: 7 Seconds
• Accuracy Full Scale: ±1% of Signal
• Repeatability F.S.: ±0.5%
• Operating Temp: 0 to 50ºC
• Humidity: 0 - 100% RH (Non - Condensing)

Model Number: PO2-2x
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PO2-2x Percent Oxygen Sensor (O2 sensor)
General Purpose % O2 measurement when CO2 > 0.1%. Use when acid gases are present (CO2, HCl, HCN, etc.)

PO2-2x Percent Oxygen Sensor (O2 sensor) Direct Replacement Guide
Analytical Industries: XLT-11-15
Teledyne: A-3, A-5

PO2-2x Percent Oxygen Sensor (O2 sensor) Specifications:

Sensor Technology	Micro Fuel Cell
Signal Output¹	105- 260uA
Measuring Range	0 - 100 Percent
Response Time T90	7 Seconds
Accuracy Full Scale²	± 1% of Signal
Repeatability F.S.	±0.5%
Temp Coefficient	2.54 % /ºC
Operating Temp	0 to 50ºC
Storage Temp	0 to 45ºC
Recommended Flow	0.5 - 2 SCFH
Humidity	0 - 100% RH (Non - Condensing)
Expected Life³	12 - 15 Months
Storage	6 Months
Warranty⁴	9 Months
PCB Connection	Center Foil Negative Outer Foil Positive

For use in CO2 applications
1. Signal output is measured in air at 25ºC, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic temperature change can result in a maximum error of ± 10%.
3. Expected life is calculated when O2 is 20.9% @ 25ºC, sea level
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
