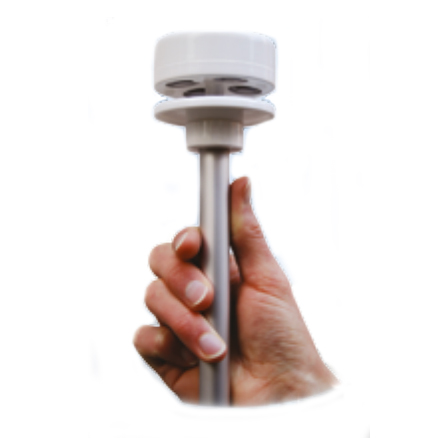

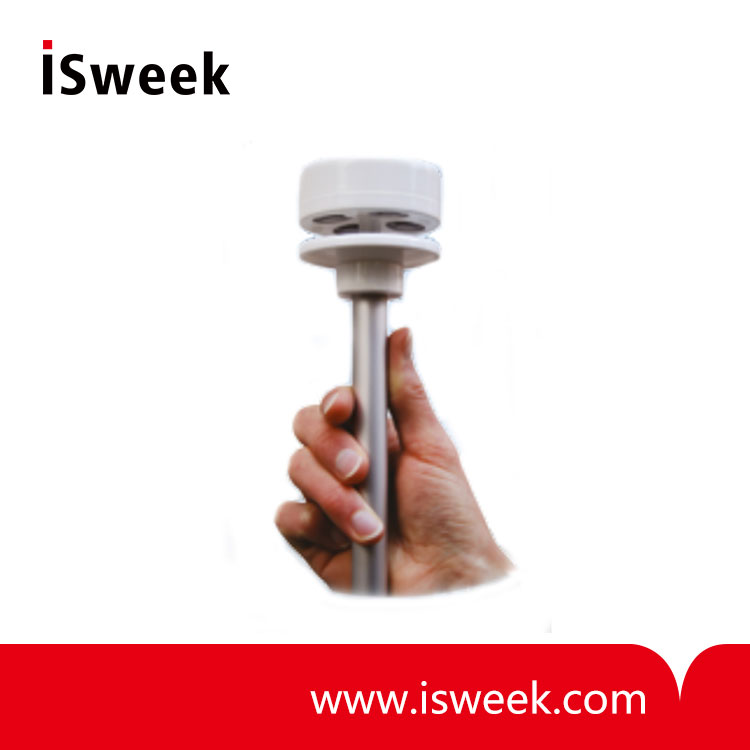

Ultrasonic Wind Speed Sensor - SONIC-ANEMO-SDI

Output rate: 2 Hz / 30 Hz measurement
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1°
Power supply: 2.7 V to 35 V DC
Electrical consumption: 2.9 mA Avg. @ 12 V
Op. temp. without icing: -15° C to +55° C

Model Number: SONIC-ANEMO-SDI
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Description

SONIC-ANEMO-SDI is made from the CV7-V to which a SDI12 protocol and optimizing electrical consumption has been added. Sample rate is 2 Hz.
This ultrasonic wind sensor operates in a request-response mode.
This product is more energy-efficient than standard units.
The SONIC-ANEMO-SDI is dedicated to meteorological applications.

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Available data:
- Average speed and direction over 10 minutes
- Minimum wind speed and direction for that period
- Maximum wind speed (gust 3s) and direction for that period
- Software version and serial number
- Data measurement quality rate from the sensor
- Data for sensor diagnostic (manufacturer use only)

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Specification:

Output data format	SDI-12 V1.3
Information transmited	Inst. W. Speed, W. Angle, Gust WS/WA, Avg, Min, Max, avaibility
Output rate	2 Hz / 30 Hz measurement
Wind module sensitivity	0.12 m/s
Wind module resolution	0.05 m/s
Wind module dynamic	0.12 to 40 m/s
Direction sensitivity	+/-1.5°
Direction resolution	1°
Power supply	2.7 V to 35 V DC
Electrical consumption	2.9 mA Avg. @ 12 V
Op. temp. without icing	-15°C to +55°C
Cable	5 m / 3x0.22 mm2 UV proof
Connection	3 wires
Weight of the head	N/A
Weight of unit assembly	200 gr with mounting part
Mounting	Vertical ; 300 aluminium arm, Ø 16 mm

Options

These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.

420 AC

This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.

• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm

ANA-AC

This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
