AC/DC Hall Effect Current Transducer - CR5410S

• Current: AC Current, DC Current
• Voltage Type: AC Voltage
• Frequency: AC Frequency, DC Frequency
• Split Core: True
• RMS: True RMS, Average RMS
• Elements: Single Element
• Outputs: 0 +/- 5 VDC, 0 +/- 5 VAC
• Power: 24 Vdc Power
• Hall Effect: Hall Effect
• Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR5410S
  • Data Sheet: Date Sheet File
- +

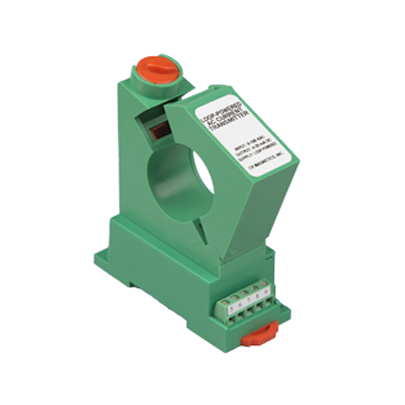

  • AC/DC Hall Effect Current Transducer
Mouse over image to zoom

Product Specification

CR5410 Series AC/DC Hall Effect Current Transducers are designed to provide a bipolar output that proportionally reflects (traces) the waveform of the input current. These devices are specifically targeted to be used in applications where multi-mode current sensing is required.

CR5410S AC/DC Hall Effect Current Transducer Features
• +/-5 Vdc and +/-5 Vac outputs
• 24 Vdc powered
• Highest precision available
• Connection diagram printed on case

CR5410S AC/DC Hall Effect Current Transducer Specifications
• Basic Accuracy: 1.0%
• Calibration: True RMS Sensing, DC
• Thermal Drift: 500 PPM/°C
• Operating Temperature: 0°C to +60°C
• Installation Category: CAT II
• Polution Degree: 2
• Insulation Voltage: 2500 Vdc
• Altitude: 2000 meter max.
• Frequency Range: DC only for DC and 20 Hz - 4 KHz for AC
• MTBF: Greater than 100 K hours
• Cleaning: Water-dampened cloth
• Supply Voltage: 24 Vdc ±10%
• Output Load: 2K Ω or Greater
• Response Time: 0.25 ms max
• Relative Humidity: 80% for temperatures up to 31°C and decreasing linearly to 50% at 40°C

CR5410S AC/DC Hall Effect Current Transducer Applications
• Inverter and multi-frequency drives
• Multi-mode ground paths carrying both AC and DC Signals
• Feed back loop building block

CR5410S AC/DC Hall Effect Current Transducer PART NUMBERS
