Average RMS AC Current Transducer - Single Element - CR4410

• Current: AC Current
• Frequency: AC Frequency
• RMS: Average RMS
• Elements: Single Element
• Outputs: 0-5 VDC
• Power: 24 Vdc Power
• Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR4410
  • Data Sheet: Date Sheet File
- +

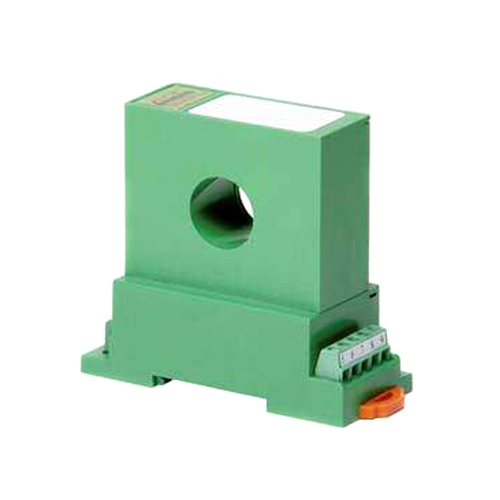

  • Average RMS AC Current Transducer - Single Element
Mouse over image to zoom

Product Specification

The CR4410 Series Average RMS Current Transducers and Transmitters are designed to provide a calibrated DC output proportional to the AC current input. Designed for multi-point current sensing, these devices provide excellent features in a high value package. Average RMS is recommended when sensing current waveforms that have a fixed frequency, and are usually for loads operated from standard utility power.

CR4410 Average RMS AC Current Transducer Features
• Analog 0 - 5 VDC output
• 24 VDC powered
• Use with external C/T's
• Highest precision available
• Connection diagram printed on case
• DIN Rail or Panel Mount

CR4410 Average RMS AC Current Transducer Specifications
• Frequency Range: 50 Hz - 400 Hz
• Basic Accuracy: 0.5%
• Output Load: 2kΩ or Greater
• Power Source: 24 VDC
• Insulation Voltage: 2500 VDC
• Response Time: 250 ms
• MTBF: Greater than 100 K hours
• Operating Temperature: 0°C to +50°C
• Thermal Drift: 500 PPM/°C
• Calibration: Average Sensing, RMS Calibrated

CR4410 Average RMS AC Current Transducer Applications
• Multi-point Current Sensing and Control Panels
• Monitor Motor Faults
• Monitor Heating Elements
• Monitor Lighting Elements

CR4410 Average RMS AC Current Transducer PART NUMBERS
