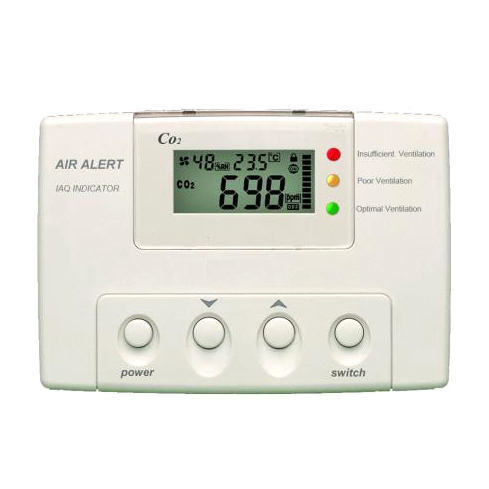

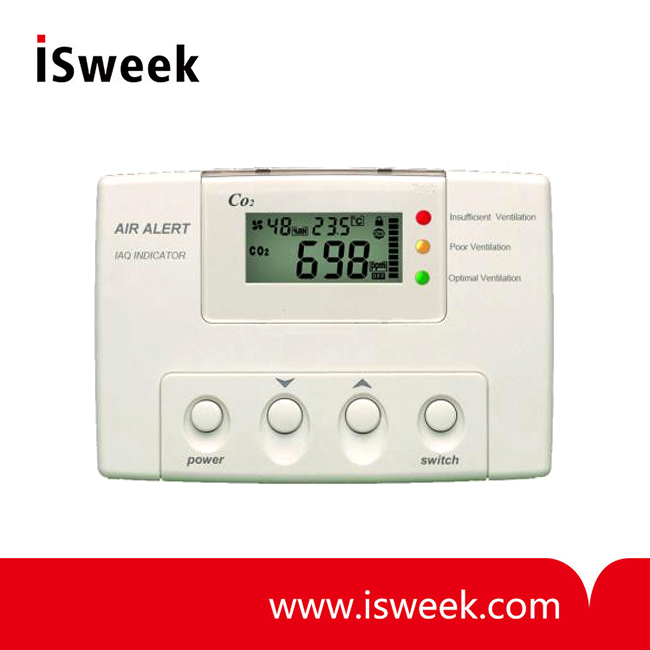

Carbon Dioxide (CO2) Gas Detector/Indicator - F2000IAQ-CO2-3100/5100

• Gas detected: Carbon Dioxide (CO2)
• Consumption: 3.5W/ Max, 2.5W/ Average
• Accuracy@25°C(77°F): ±40ppm + 3% of reading
• CO2 measuring range: 0~5,000ppm, 0~2,000ppm, optional
• CO2 setting & Display resolution: 1ppm
• Temperature measuring range: 0~50°C (32~122°F)
• Operation temperature: 0~50°F (32~122°F)
• Operation humidity: 0~95%RH without condensing

Model Number: F2000IAQ-CO2-3100/5100
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CO2 Detector/Indicator
F2000IAQ-CO2-3100/3101/5100/5101
CE Approval

F2000IAQ-CO2-3100/3101/5100/5101 CO2 Detector/Indicator Description
F2000IAQ-CO2 detector/Indicator is used to monitor and alarm CO2 level and room temperature. Relative humidity detection and display can be as an option. Other options can be provided to users: RS485 communication interface with independent address; one dry contact output to control a ventilation device.

Especial design for schools, kindergartens, office buildings, conference rooms, rest rooms as well as other public places.

• Built-in NDIR CO2 module, 15 years long life.
• ABC Logic self calibration algorithm for CO2 sensor.
• Real-time detect and display room CO2 and temperature
• 3 LED indicator lights following three different CO2 ranges to indicate ambiance ventilation situation: Optimal Ventilation; Poor Ventilation and Insufficient Ventilation.
• Optional humidity detection and display

F2000IAQ-CO2-3100/3101/5100/5101 CO2 Detector/Indicator Features
• Real-time detecting and display CO2 level during 0ppm to 20,000ppm CO2 range; Also detecting room temperature from 5 to 45°C
• Optional real-time humidity from 5%RH to 95%RH
• NDIR CO2 sensor technology of infrared self diffusion, 15 years lifetime
• Self Calibration Algorithm makes it in using without calibration amending
• The three measured CO2 ranges for 3-LED indicator lights selectable by end users
• LED's brightness adjustment
• Optional 1X dry contact output or one 0~10VDC output to control a ventilation device
• Easy preset CO2 level for buzzer alert (optional)
• Optional RS485 interface to connect to a PC or another system (optional)

F2000IAQ-CO2-3100/3101/5100/5101 CO2 Detector/Indicator Specifications

Gas detected	Carbon Dioxide (CO2)
Sensing element	Non-Depressive Infrared Detector (NDIR)
Temperature sensor	NTC
Temperature correction	Self compensation
CO2 NDIR life	15 years
Consumption	3.5W/ Max, 2.5W/ Average
Accuracy@25°C(77°F)	±40ppm + 3% of reading
Stability	<2% of FS over life of sensor (15 yr typical)
Warm up time	2 hours (first time) 2 minutes (operation)
CO2 measuring range	0~5,000ppm(default ) 0~2,000ppm programmable selection
CO2 setting & Display resolution	1ppm
Temperature measuring range	0~50°C (32~122°F)
Temperature setting range	5~45°C (41~113°F)
Option: 1X dry contact output	Rated currency for contact point: 2A 220VAC/30VDC, resistance load
Option: RS485 communication interface	9600/14400/19200(default)/28800/38400bps rates selectable by program,15KV protection for static, independent address setting
Operation condition	0~50°F (32~122°F), 0~95%RH without condensing
Power supply	220VAC/110VAC or 24VAC 50/60HZ±10%
Weight	380g
Dimensions	130mm x 90mm x 40mm
Connections Interface	Locate in interface of connection
Installment standard	65mm x 65mm or 2" x 4" wire box
Wiring standard	Wire section area <1.5mm²
Approval Standard	CE-Approval
Programming and selection	DIP switches inside and external push-buttons
