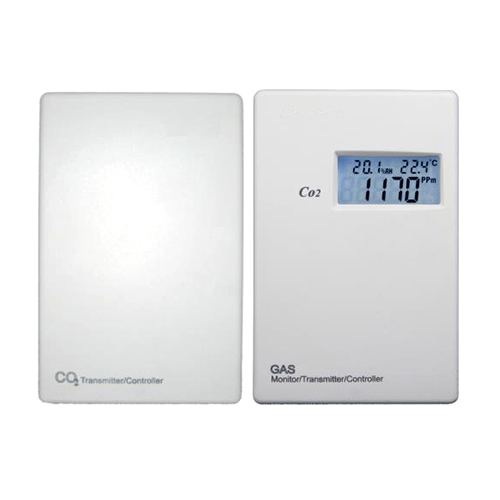

Carbon Dioxide Transmitter with Temperature and RH% Option - G01-CO2-B10C/30C

• CO2 range: 0~2000ppm/ 0~5,000ppm optional
​• CO2 Accuracy​: ±40ppm + 3% of reading or ±75ppm
​• Temperature dependence: 0.2% FS per °C
• Stability: <2% of FS over life of sensor
• Power supply: 24VAC/VDC
• Consumption: 1.8 W max. ; 1.2 W avg.
• Operation temperature: 0~50°C (32~122°F)
​• Operation humidity​: 0~95%RH, non condensing

  • Model Number: G01-CO2-B10C/30C
  • Data Sheet: Date Sheet File
Quantity:
- +

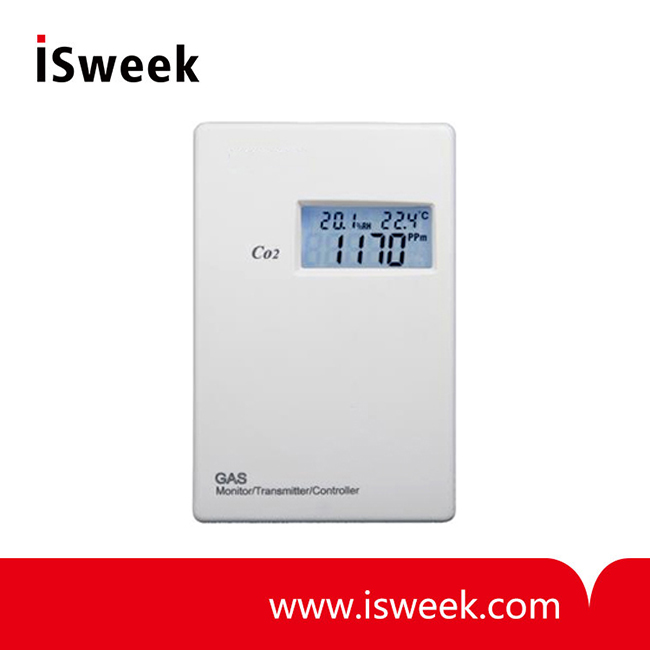

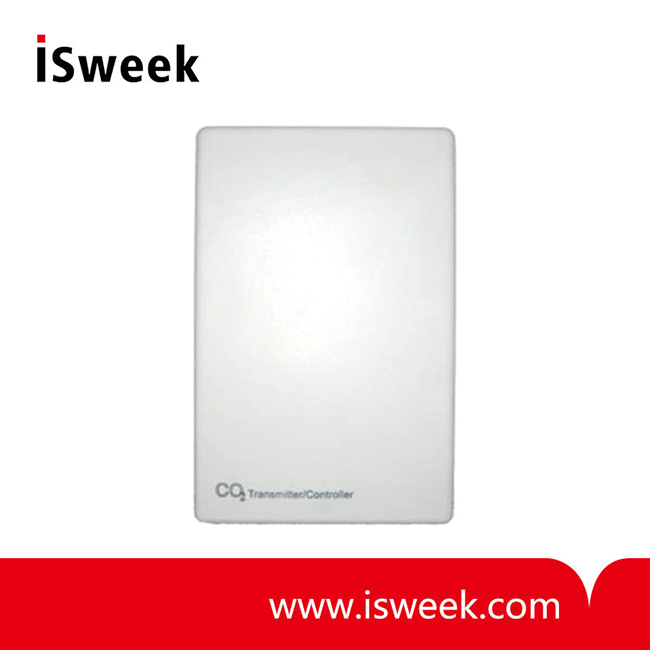

  • Carbon Dioxide Transmitter with Temperature and RH% Option
  • Carbon Dioxide Transmitter with Temperature and RH% Option
  • Carbon Dioxide Transmitter with Temperature and RH% Option
Mouse over image to zoom

Product Specification

Carbon Dioxide Transmitter
with Temperature and RH% Option
Model#: G01-CO2-B10C/30C


  • Real time carbon dioxide detection and transmitting
  • High accuracy Temperature and humidity detection
  • NDIR infrared CO2 sensor with patented self calibration
  • Provide 3xanalog linear outputs for measurements
  • Optional LCD display of all measurements
  • Modbus communication
  • CE-approval


G01-CO2-B10C/30C Carbon Dioxide Transmitter Features
• Design for real time measuring ambiance carbon dioxide level and temperature +RH%
• NDIR infrared CO2 sensor inside with special Self Calibration. It makes CO2 measurement more accurate and more reliable.
• More than 10 years lifetime of CO2 sensor
• High accuracy temperature and humidity measurement
• Combined both humidity and temperature sensors seamlessly with the digital auto compensation
• Provide up to three analog linear outputs for measurements
• LCD is optional to display CO2 and temperature &RH measurements
• Optional Modbus communication
• 24VAC/VDC power supply
• EU standard and CE-approval


G01-CO2-B10C/30C Carbon Dioxide Transmitter Application
• Building ventilation systems
• Industry ventilation systems
• Airport, train station, shopping mall, office, classroom and other public places for air quality measurement and indication
• Lab., warehouse, and other places to detect CO2+Temp. +RH%


G01-CO2-B10C/30C Carbon Dioxide Transmitter Specifications

CO2 Measurement
Sensing element
Non-Dispersive Infrared Detector (NDIR)
CO2 range
0~2000ppm/ 0~5,000ppm optional
CO2 Accuracy @22°C(72°F)
±40ppm + 3% of reading or ±75ppm (whichever is greater)
Temperature dependence
0.2% FS per °C
Stability
<2% of FS over life of sensor (15 year typical)
Pressure dependence
0.13% of reading per mm Hg
Calibration
ABC Logic Self Calibration Algorithm
Response time
<2 minutes for 90% step change typical
Signal update
Every 2 seconds
Warm-up time
2 hours (first time) / 2 minutes (operation)

Temperature
Humidity
Measuring range
0°C~50°C(32°F~122°F) (default)
0 -100%RH
Accuracy
±0.4°C (20°C~40°C)
±3%RH (20%-80%RH)
Display resolution
0.1°C
0.1%RH
Stability
<0.04°C/year
<0.5%RH/year
General Data
Power supply
24VAC/VDC
Consumption
1.8 W max. ; 1.2 W avg.
Analog outputs
1~3 X analog outputs
0~10VDC(default) or 4~20mA (selectable by jumpers)
0~5VDC (selected at placing the order)
Modbus communication (optional)
RS-485 with Modbus protocol, 19200bps rate, 15KV antistatic
protection, independent base address
Operation conditions
0~50°C (32~122°F); 0~95%RH, non condensing
Storage conditions
10~50°C (50~122°F), 20~60%RH non condensing
Net Weight
240g
Dimensions
130mm(H) x 85mm(W) x 36.5mm(D)
Installation
wall mounting with 65mm x 65mm or 2" x 4" wire box
Housing and IP class
PC/ABS fireproof plastic material, protection class: IP30
Standard
CE-Approval


G01-CO2-B10C/30C Carbon Dioxide Transmitter Models Guide

G01-CO2-B X 0 C - Y 0 Z - U 02/05 - T/TH - Txx
X:
LCD or no LCD

1- Without LCD, 24VAC/VDC power supply
3- LCD display, 24VAC/VDC power supply
C:
24VAC/VDC power supply
Y:
analog output quantity

3- 3Xanalog outputs (for CO2, temperature, humidity)
2- 2Xanalog outputs (for CO2, temperature)
1- 1xanalog output (for CO2)
0- no analog output
Z:
Modbus communication

1- with Modbus communication
0- no Modbus
U:
type of analog output

V- 0~10VDC (default)
A- 4~20mA
V5- 0~5VDC (not be changed)
02/05:
CO2 range

02- 0~2000ppm
05- 0~5000ppm
T/TH:
temperature option/ temperature and humidity option
Txx:
temperature scaling

T05: 0°C~50°C(32°F~122°F) default (without the postfix indicates the default)
T06: 0°C~60°C(32°F~140°F)
T26: -20°C~60°C(-4°F~140°F)

Accessory (selectable at placing the order)
921:  back plate for wall mounting
921+922:  desktop bracket
