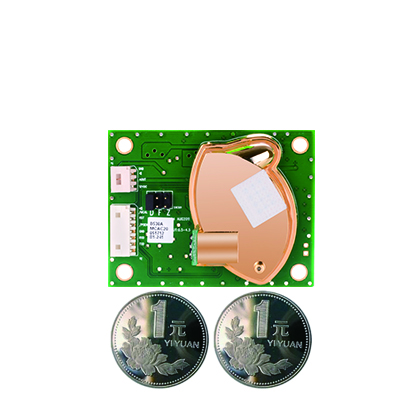

CO2 sensor module ELT Sensor - B-530

• Non-Dispersive Infrared (NDIR) technology used to measure CO₂ levels.
• Robust to show high stability and strength under extreme condition.
• Resistant to 0~95%RH Humidity.(0~99%RH Humidity is option)
• Pre-calibrated
• 3 and 7 pin connector is available.
• UART, AVO output is available.
• Size : 66mm x 50mm x 22.2mm

  • Model Number: B-530
  • Data Sheet: Date Sheet File
Quantity:
- +
  • CO2 sensor module ELT Sensor
  • CO2 sensor module ELT Sensor
Mouse over image to zoom

Product Specification

B-530 ELT Sensor General:

    The B-530 model is designed to measure CO2 level in the air. Its Consistent Stability and Temperature Change Effect Compensation as well as easy management are much favored by customers in stocks raising, scientific projects, etc.

    B-530G model is sealed to be resistance to 99% humidity harsh environment such as mushroom green houses, plant factories, breeding farms and so on.



B-530 ELT Sensor Features:

Non-Dispersive Infrared (NDIR) technology used to measure COlevels.

Robust to show high stability and strength under extreme condition.

Resistant to 0~95%RH Humidity.(0~99%RH Humidity is option)

Pre-calibrated

• 3 and 7 pin connector is available.

• UART, AVO output is available.

Size : 66mm x 50mm x 22.2mm



B-530 ELT Sensor Specifications:



B-530

Sensing Method

NDIR (Non-dispersive Infrared)

Dimensions

66mmx50mmx22.2mm (25g)

Measurement Range

0 ~ 2,000ppm (0 ~ 3,000/5,000/10,000ppm, 5% models are available)

Accuracy

± 30ppm ± 3% of reading (±300ppm ±3% of reading 5% models)

Operating Temperature Range

-20~ 65

Operating Temperature Range

-30~ 70

Operating Humidity Range

0 ~ 95% RH (Non-condensing condition)

Input Power

12VDC (9 ~ 15VDC)

Power Consumption

Normal : 33/ Max : 230

Response Time

120 Seconds

Sampling Interval

3 Seconds

Output

UART- 38,400BPS, 8bit, No parity, 1 stop bit TTL Level

Analog Voltage => VDC 0.5 to 4.5V (linear output)
