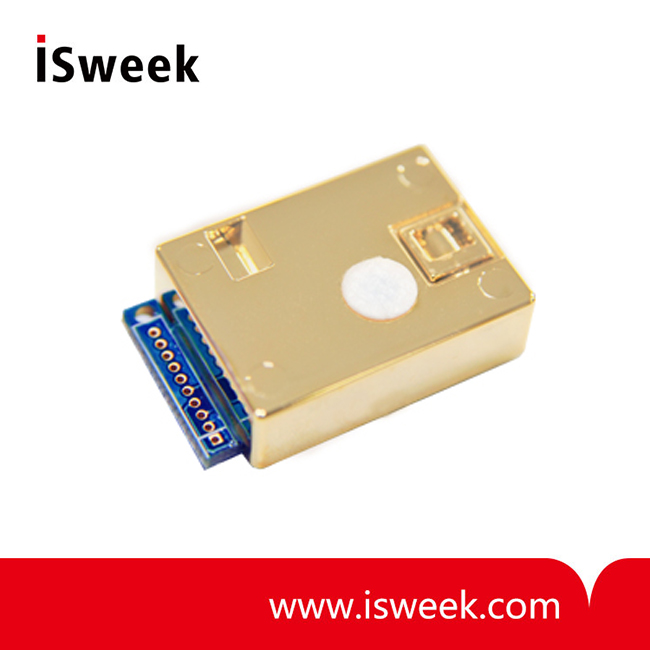

CO2 sensor module ELT Sensor - T-110

•ROHS Directive : 2011/65/EU[EN 50581 : 2012, IEC 62321-3-1 : 2013]
•Size : 19mmx29.3mmx8.5mm
•Weight : 5 grams

Model Number: T-110
Data Sheet:

Quantity:: - +

Mouse over image to zoom

Product Specification

T-110 ELT Sensor General:

T-110 is the world’s lightest and smallest CO2 sensor modules. Their easy management besides Persistent Stability and Temperature Effect Resistance are much favored by mobile application which needs sleep mode support, so on.

T-110 ELT Sensor Features:

• Non-Dispersive Infrared (NDIR) technology used to measure CO₂ levels.

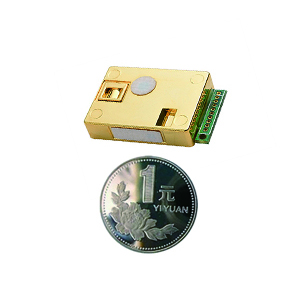

• The world’s smallest size

• Pre-calibrated

• Available output : TTL-UART, I2C(PWM/Analog Voltage option)

• Gold-plated sensor provides long-termcalibration stability.

• Installed Calibration function

• ROHS Directive : 2011/65/EU[EN 50581 : 2012, IEC 62321-3-1 : 2013]

• Size : 19mmx29.3mmx8.5mm

• Weight : 5 grams

T-110 ELT Sensor Specifications:

	T-110
Sensing Method	NDIR (Non-dispersive Infrared)
Dimensions	19mm x 29.3mm x 8.5mm (5g)
Measurement Range	400 ~ 2,000ppm (0~3,000/5,000/10,000ppm, 2%/3%/5%/10% models are available)
Accuracy	± 50ppm ± 3% of reading (±300ppm ±3% of reading – 2%/3%/5%/7% models)
Operating Temperature Range	0℃ ~ 50℃
Operating Temperature Range	-30℃ ~ 70℃
Operating Humidity Range	0 ~ 95% RH (Non-condensing condition)
Input Power	5V ± 5%
Power Consumption	Normal : 20㎃ / Max. 200㎃ / Sleep. 0.5㎃
Response Time	90 Seconds (1/e)
Sampling Interval	5 Seconds
Output	UART- 38,400BPS, 8bit, No parity, 1 stop bit TTL Level I2C => Slave,PWM(Option)
Output	Analog Voltage (Option) => VDC 0.5 to 4.5V (linear output)
