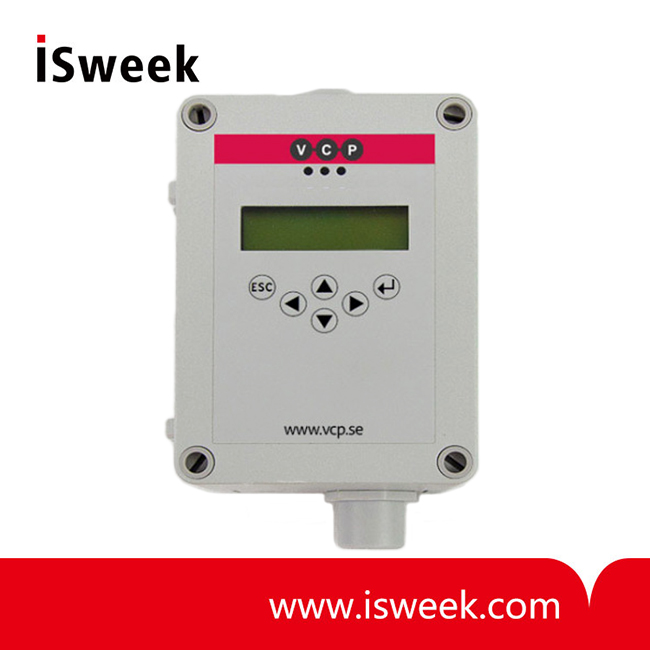

Combustible Gas Detectors with Analoge Output - G-series

• Sensor element: Pellistor (Catalytic Bead)
• Accuracy: +/-1%
• Resolution: 0.2%
• Response time t90: <15 sec.
• Zero Point variation: 0.5%
• Long-term zero-point drift: <0.5% LEL
• Long-term sensivity drift: <1%
• Temp. range: +20 °C to +50 °C
• Humidity range: 5 to 95% RH non-condensation

  • Model Number: G-series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Combustible Gas Detectors with Analoge Output
  • Combustible Gas Detectors with Analoge Output
  • Combustible Gas Detectors with Analoge Output
  • Combustible Gas Detectors with Analoge Output
Mouse over image to zoom

Product Specification

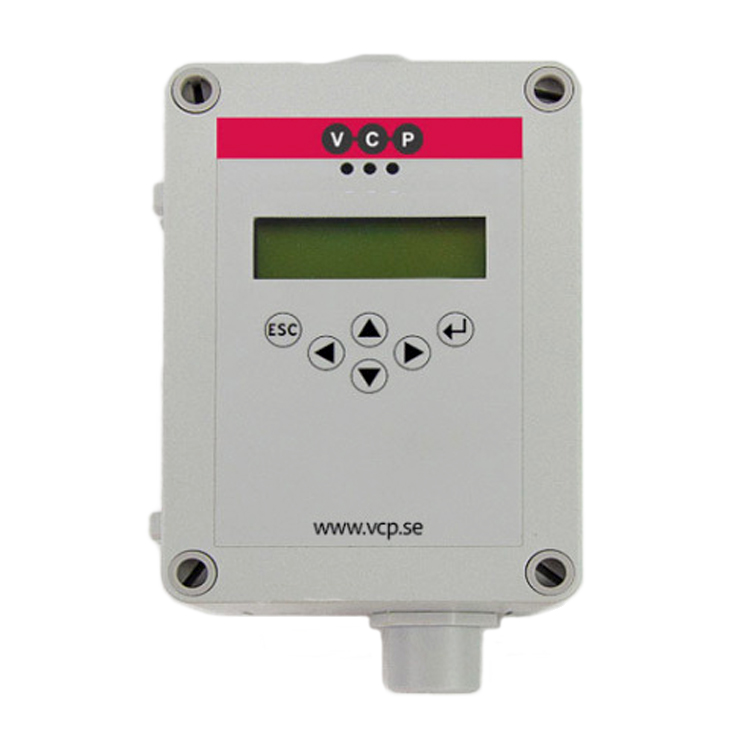

Combustible gas detector G-series for wall mounting

G-series Combustible Gas Detectors Gases
• Methane, CH4
• Liquid Petroleum Gas, LPG
• Hydrogen, H2
• Propane, C3H8
• Ethylene, C2H4
• Ethyl alcohol, C2H5OH
• Methanol, CH3OH
• Acetone, C3H6O
• Isopropyl alcohol, C3H8O
• Iso/n-Butane, C4H10
• Toluene, C7H8
• Petrol Vapors
On request: other combustible gas detectors

G-series Combustible Gas Detectors Features
• Pellistor (Catalytic Bead) sensor
• Power supply 24 Vdc for output 4-20 mA
• Power supply 24 Vac for output 2-10 Vdc
• Measuring ranges: see ordering on page
• IP65 enclosure with quick locking screws
• Digital measurement value processing incl. temperature compensation
• Internal function control with integrated hardware watchdog
• Data / measured values in micro controller of sensor unit, therefore
