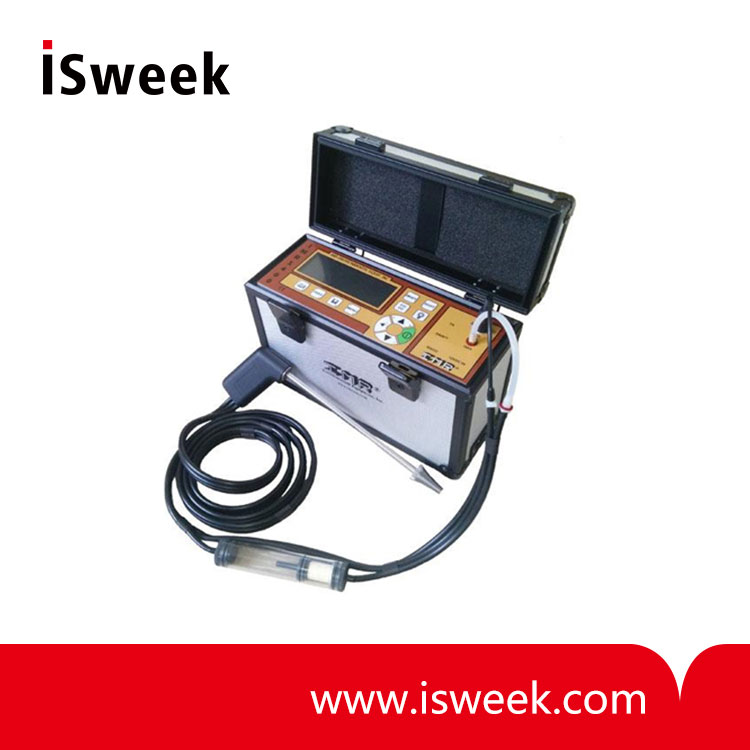

Combustion Gas Analyzer for Nitric Oxide - IMR-1400-C-NO

* 7 Fuels are programmed - 5 fuels are programmable
* Automatic zero calibration
* Integrated self-check program
* Simultaneous display of eight parameters on the illuminated display
* Unit selection : ppm - mg - mg(ref O2) - mg/kWh
* Gas sampling probe E - length 0.8 ft , hose 8 ft
* Rechargeable battery with charger
* Power supply 110V or 230V

  • Model Number: IMR-1400-C-NO
Quantity:
- +
  • Combustion Gas Analyzer for Nitric Oxide
  • Combustion Gas Analyzer for Nitric Oxide
Mouse over image to zoom

Product Specification

IMR 1400 - compact (NO)
Standard NO-sensor

* has been designed to measure flue gases on
  • Boilers     • Turbines
  • Burners   • Cars
  • Engines   • Trucks
* has been developed to meet the customers need
* is a high quality combustion gas analyzer using the latest sensor technology
* is easy to use and will measure all the important parameters to adjust or optimize the combustion process

IMR-1400-C-NO Combustion Gas Analyzer Standard Features
* Portable and very compact combustion gas analyzer housed in a rugged aluminum case
* Simultaneous measurement of
    O2   Oxygen
    CO   Carbon Monoxide
    NO  Nitric oxide
    TG   Flue-gas temperature
* Calculation of following parameters according
    ASME-equations
    Combustion efficiency
    Losses
    Excess Air
    CO2 Carbon Dioxide
* 7 Fuels are programmed - 5 fuels are programmable
* Automatic zero calibration
* Integrated self-check program
* Simultaneous display of eight parameters on the illuminated display
* Unit selection : ppm - mg - mg(ref O2) - mg/kWh
* Gas sampling probe E - length 0.8 ft , hose 8 ft
* Rechargeable battery with charger
* Power supply 110V or 230V

IMR-1400-C-NO Combustion Gas Analyzer Optional Features
* Ambient air temperature probe
* Gas sampling probe with heated handle
* Gas sampling probes with different lengths
* Electronic controlled soot measurement
* Draft measurement
* SO2-measurement
* NO2-measurement
* HC-measurement
* CO-bypass valve with purging pump
* RS 232 interface
* Memory for 200 measurements
* 12V DC power jack


IMR-1400-C-NO Combustion Gas Analyzer Technical Data
