DC Voltage Transducer - 4-20 mA DC output - CR5320

• Voltage Type: DC Voltage
• Frequency: DC Frequency
• RMS: N/A
• Elements: Single Element
• Outputs: 4-20 mA DC
• Power: 24 Vdc Power
• Mount: DIN Rail Mount, Panel Mount
• Output Load: 0-300 Ω

  • Model Number: CR5320
  • Data Sheet: Date Sheet File
- +

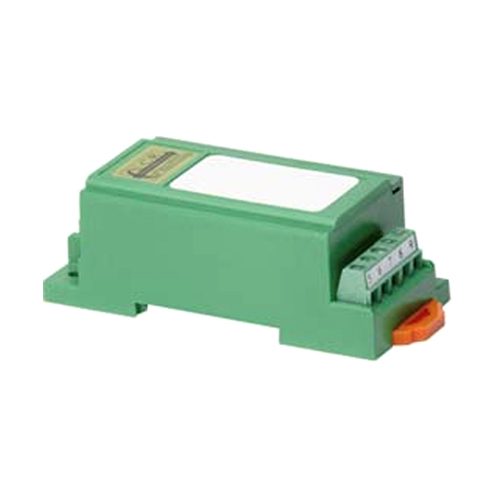

  • DC Voltage Transducer - 4-20 mA DC output
Mouse over image to zoom

Product Specification

CR5320 DC Voltage Transducers and Transmitters are designed to provide an output DC signal that is proportional to the input DC voltage. These devices are focused to provide an easy solution to DC voltage instrumentation needs.

CR5320 DC Voltage Transducer Features
• Outputs isolated from inputs
• DIN rail or panel mount
• Connection diagram printed on case
• 4-20 mA DC output

CR5320 DC Voltage Transducer Specifications
• Response Time: 250 ms
• Operating Temperature: 0°C to +50°C
• MTBF: Greater than 100 K hours
• Insulation Voltage: 2500 VDC
• Supply Voltage: 24 VDC
• Frequency Range: DC
• Thermal Drift: 500 PPM/°C
• Output Load: 0-300 Ω
• Output Load: Basic Accuracy: 1.0%

CR5320 DC Voltage Transducer Applications
• Mobile applications
• Power Supply over/under sensing
• Power sensing
• Battery chargers and systems

CR5320 DC Voltage Transducer PART NUMBERS
