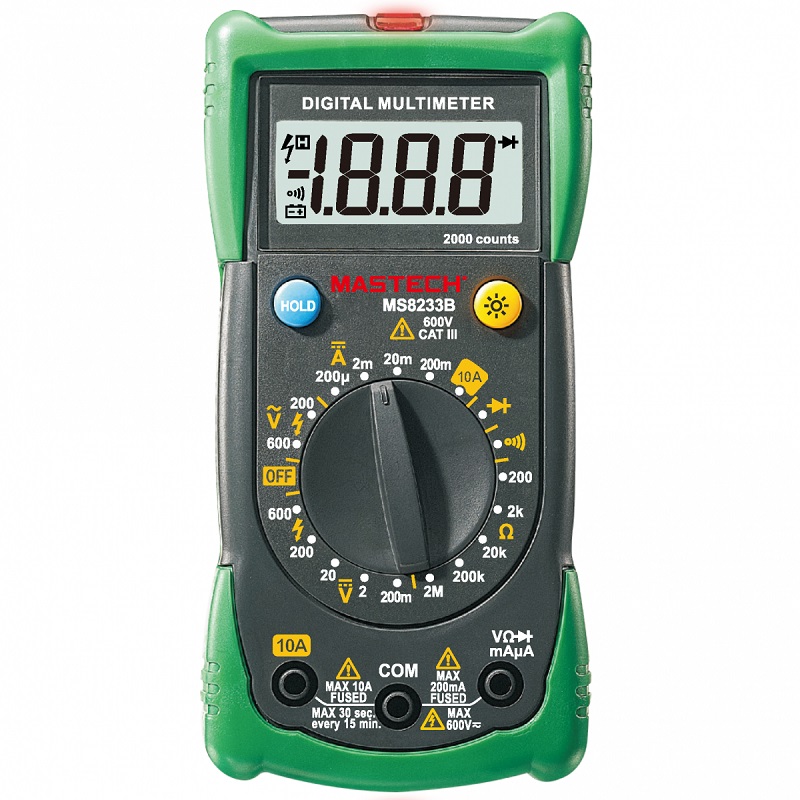

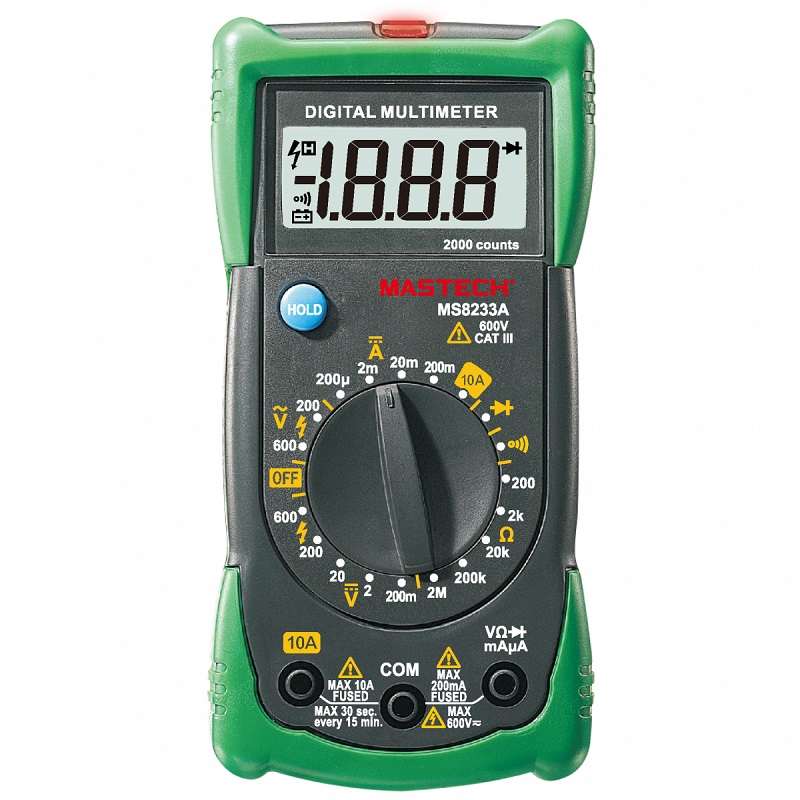

Digital Multimeter MS8233A - MS8233B/MS8233C/MS8233E

•​ Display 2000 counts
•​ Data Hold
•​ Low Battery Display
•​ Power Supply: 1 x 9V 6F22 Battery
•​ Product Size: 140mm x 67mm x 30mm / 5.5" x 2.6” x 1.2”
•​ Product Weight: 112g/0.25lb
•​ Certificate: CE / ETL / RoHS
•​ Safety Rating: CATIII 600V

  • Model Number: MS8233B/MS8233C/MS8233E
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart
  • Digital Multimeter MS8233A
  • Digital Multimeter MS8233A
  • Digital Multimeter MS8233A
  • Digital Multimeter MS8233A
Mouse over image to zoom

Product Specification

Digital Multimeter Safety information
This multimeter has been designed according to IEC61010-1 conerning electronic measuring instruments with an overvoltage category (CAT III) and pollution 2.

Follow all safety and operating instructions to ensure that the meter is used safely and is kept in good operating condition.

Full compliance with safety standards can be guaranteed only with test leads supplied. If necessary, they must be replaced with the type specified in this manual.

Digital Multimeter Specification
Accuracy is specified for a period of one year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 80%.

Spec
 Features Accuracy
MS8233A MS8233B
 MS8233C
 MS8233E
DC Voltage
 200mV/2V/20V/200V/600V


±(0.5%+2)
200mV/2V/20V/200V
 ±(0.5%+3) ±(0.5%+3)
 ±(0.5%+3)
600V
 ±(0.5%+3)
 ±(0.5%+3)
 ±(0.5%+3)
 ±(0.8%+2)
AC Voltage
 2V/20V/200V/600V


±(1.2%+10)
200V/600V
 ±(1.2%+10)
 ±(1.2%+10)
 ±(1.2%+10)
DC Current
 200μA/2mA/20mA/200mA
 ±(1.0%+3)
 ±(1.0%+3)
 ±(1.0%+3)
 ±(1.5%+4)
10A ±(3.0%+5)
 ±(3.0%+5)
 ±(3.0%+5)
 ±(1.5%+3)
AC Current
 200μA/2mA/20mA/200mA


±(1.5%+4)
10A


±(1.5%+4)
Resistance
 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+4)
 ±(0.8%+4)
 ±(0.8%+4)
 ±(0.8%+4)
Temperature(°C/F°)
 -20 ~ 1000°C

±(2.0%+2)
 ±(3.0%+3)
-4 ~ 1832°F

±(2.0%+4)
 ±(3.0%+6)

Digital Multimeter Features
Features
 Item MS8233A
 MS8233B
 MS8233C
 MS8233E
Display count 2000 2000 2000 2000
Autorange



•
NCV non-contact voltage detection
•
 •
 •
Diode
3.0V 3.0V
 3.0V
 1.5V
Continuity
<60Ω <60Ω
 <60Ω
 <70Ω
Data Hold
•
 •
 •
 •
Display Backlight

•
 •
 •
MAX



•
