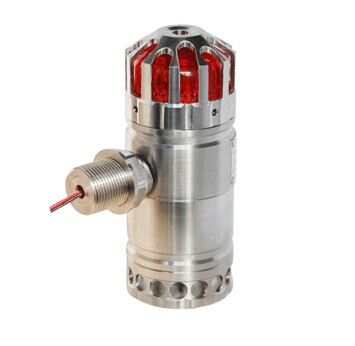

Explosion-proof Acousto-optic Annunciator - RS100

Voltage: DC24V +/- 50%
Current: < 300mA
Light Intensity: 2400 +/- 200mcd
Sound: >=85dB
Working condition: Tem.: -40'C - 70'C Hum.: 85~95% RH
Protection degree: IP66
Dimension: L X B X H 85mm X 50mm X 124mm
Weight: Appr. 1Kg

  • Model Number: RS100
Quantity:
- +
  • Explosion-proof Acousto-optic Annunciator
Mouse over image to zoom

Product Specification

RS100 Annunciator


RS100 explosion-proof acousto-optic annunciator is designed basing on the newest electronic product technology, which is specially developed for gas detector and other equipment with Acousto-optic alarming function.


Specifications

Voltage: DC24V +/- 50%

Current: < 300mA

Light Intensity: 2400 +/- 200mcd

Sound: >=85dB

Life-span:

Continuously alarming, for less than 5 hours each day;

The life-span can be more than 3 years.

Working condition:  Tem.: -40'C - 70'C   Hum.: 85~95% RH

Housing material: Stainless steel( 0Gr18Ni9 )

Protection degree: IP66

Explosion-proof degree: ExdibII CT6

Dimension: L X B X H  85mm X 50mm X 124mm

Weight: Appr. 1Kg
