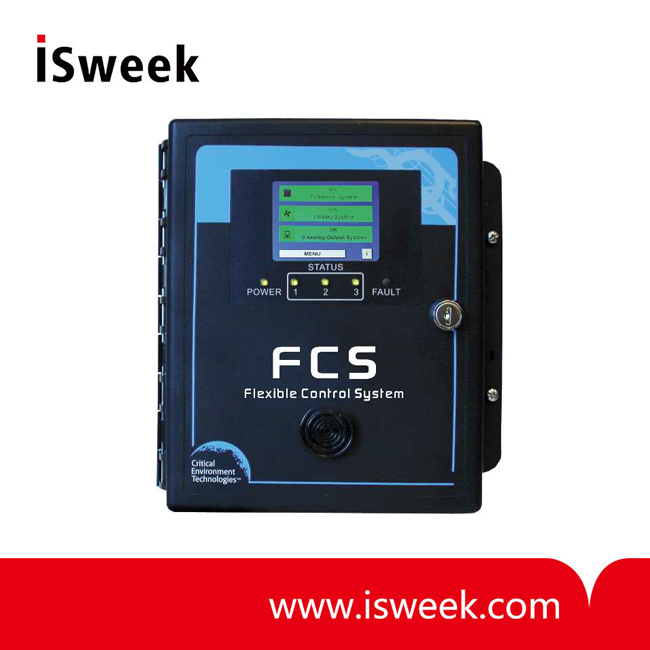

Flexible Control System Gas Detection Controller - FCS-8

• Up to 8 channels of gas readings
• RoHS compliant circuit boards
• Input: Modbus® RS-485 input, 4-20 mA analog input (optional)
• Power Requirement: 90 - 240 VAC, 50 - 60 Hz, 75 W Line Voltage
• Operating Temperature: -20°C to 40°C (-4°F to 104°F)
• Operating Humidity: 15 - 90% RH non-condensing
• IP54 rating with door mounted

  • Model Number: FCS-8
  • Data Sheet: Date Sheet File
- +
  • Flexible Control System Gas Detection Controller
  • Flexible Control System Gas Detection Controller
Mouse over image to zoom

Product Specification

FCS-8 Flexible Control System Description
The FCS-8 Flexible Control System is a high performance controller that of ers up to 8 gas channel configurations for monitoring toxic, combustible or refrigerant gases with versatile control functionality for non-hazardous, non-explosion rated, commercial and light industrial applications. The FCS-8 is designed to accept inputs from digital and/or analog transmitters and/or Peripheral Devices (in various combinations), using Modbus® RS-485 or 4-20 mA analog input. The FCS-8 is available in two models: the FCS-8-M with Modbus® RS-485 output or the FCS-8-B with BACnet® MS/TP output for communicating with a Building Automation System (BAS).

Standard features include, four internal SPDT dry contact relays with field configurable time delays and trigger levels, a full colour LCD resistive touch screen with an LED panel indicating configurable channel alarm status, relay status and fault conditions, an extensive menu system with password protection, enhanced logic control, priorities / zoning capabilities, a USB port for firmware upgrades, data logging and a door-mounted audible alarm.

Optional value added features include, analog inputs and/or analog outputs, a top mounted strobe, a locking door and a water tight audible alarm. The FCS-8 can can be connected to several remote devices such as a remote strobe/horn combo, a Remote Display Module and various LNK Peripheral Devices required to complete the necessary gas detection system.

FCS-8 Flexible Control System Key Features
• Up to 8 channels of gas readings
• Graphic, full colour, resistive touch LCD display with LED indicators
• Four internal SPDT dry contact relays
• Up to 8 conf gurable internal analog inputs and/or analog outputs (optional)
• Modbus® RS-485 LAN communications for controlling Peripheral Devices
• Modbus® RS-485 (FCS-8-M) or BACnet® MS/TP (FCS-8-B) WAN output for communicating with a BAS or DCC
• Conf gurable for compliance with California Title-24 Building Energy Efficiency Standards
• USB port for f rmware upgrades and data logging
• Standard water / dust tight, corrosion resistant enclosure (drip proof); with optional lockable door. IP54 rating with door mounted, water tight buzzer installed
• RoHS compliant circuit boards

FCS-8 Flexible Control System Applications
• Small sized Parking Facilities
• Indoor Recreation Facilities (ice arena, swimming pool)
• Food Processing Plants
• Cold Storage and Freezer Rooms
• Chemical Storage Rooms
• ... and many more
