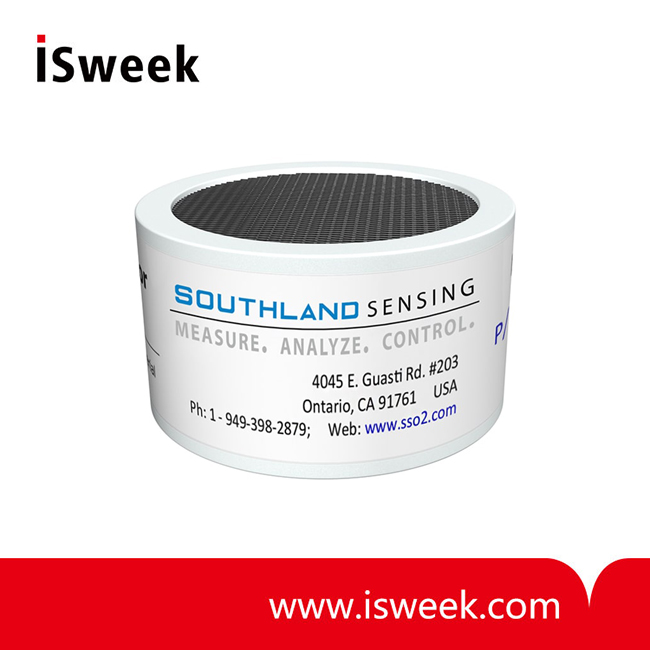

General Purpose Trace (PPM) Oxygen Sensor - TO2-133

• Sensor Technology: Micro Fuel Cell
• Signal Output: 520 - 1020 uA
• Measuring Range: 0 - 10 PPM (Min); 0 - 10000 PPM (Max)
• Response Time T90: 7 Seconds
• Accuracy Full Scale: ±1% of Signal
• Repeatability F.S.: ±0.5%
• Operating Temp: 0 to 50ºC
• Humidity: 0 - 100% RH (Non - Condensing)

  • Model Number: TO2-133
  • Data Sheet: Date Sheet File
Quantity:
- +
  • General Purpose Trace (PPM) Oxygen Sensor
  • General Purpose Trace (PPM) Oxygen Sensor
Mouse over image to zoom

Product Specification

TO2-133 PPM Oxygen Sensor

General Purpose Trace O2 measurement 0 - 10ppm. Fast Response, Competitive Replacement


TO2-133 PPM Oxygen Sensor Direct Replacement Guide
Analytical Industries: GPR-12-333


TO2-133 PPM Oxygen Sensor Specifications:

Sensor Technology

 Micro Fuel Cell

Signal Output1

 520 - 1020 uA

Measuring Range

 0 - 10 PPM (Min)
 0 - 10000 PPM (Max)

Response Time T90

 7 Seconds

Accuracy Full Scale2

 ± 1% of Signal

Repeatability F.S.

 ±0.5%

Temp Coefficient

 2.54%/°C

Operating Temp

 0 to 50°C

Storage Temp

 0 to 45°C

Recommended Flow

 0.5 - 5 SCFH

Humidity

 0 - 100% RH (Non - Condensing)

Expected Life3

 20 - 25 Months

Storage

 6 Months

Warranty4

 12 Months

PCB Connection

 Center Foil Negative Outer Foil Positive


1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic Temperature change can result in a maximum error of ± 10%.
3. Expected life is calculated when O2 < 1000 ppm @ 25°C, Sea Level.
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
