High-Ratio Current Transformer - Model 17

• Low cost
• Non-contact, isolated measurement
• Surface Mounting bracket available for Models 17 and 18.
• Two different standard ratios
• Case Material: Black Thermoplastic
• Construction: Epoxy Encapsulated
• Maximum Continuous Primary Current 4 X Ir.
• Insulation Voltage: 3500 Vac/1min.

  • Model Number: Model 17
  • Data Sheet: Date Sheet File
Quantity:
- +

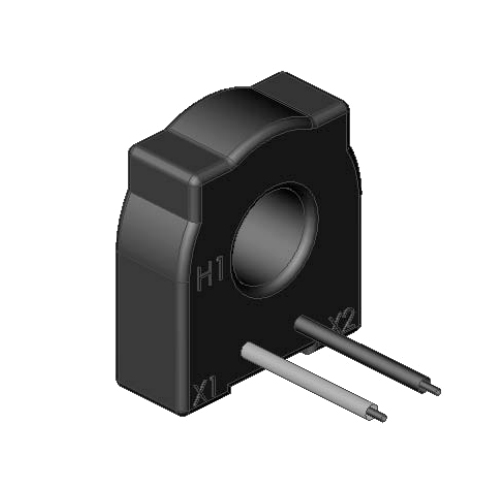

  • High-Ratio Current Transformer
Mouse over image to zoom

Product Specification

CR Magnetics offers a versatile line of rugged wire lead current transformers. Installed around a current-carrying wire, the sensor provides a current output relative to the AC input current (within specification limits). With the output connected across a resistive load (burden), the voltage developed is proportional to the input current.

Model 17 High-Ratio Current Transformer Features
• Low cost
• Non-contact, isolated measurement
• Surface Mounting bracket available for Models 17 and 18.
• Two different standard ratios

Model 17 High-Ratio Current Transformer Specifications
• Case Material: Black Thermoplastic
• Construction: Epoxy Encapsulated
• Maximum Continuous Primary Current 4 X Ir.
• Insulation Voltage: 3500 Vac/1min.

Model 17 High-Ratio Current Transformer Applications
• Remote Monitoring of Electrical Loads.
• Input to electrical control system.
• Detect open heater elements
• Indicate Phase Loss
• Monitor Motor Operation.

Model 17 High-Ratio Current Transformer ORDER INFORMATION

Part Number
Description
Model 17-2000
Current Transformer with wire leads, .55 dia. opening, 2000 turns
Model 17-1000
Current Transformer with wire leads, .55 dia. opening, 1000 turns
MB-18
Surface Mounting Bracket for Model 17 or Model 18
