HumiChipⅡ (SIP Type) - HCS2D-3V

• ​Fully Calibrated & Temperature Compensated
• ​Improved Temperature Accuracy & Range (±0.2℃ for ­20 ~ 60℃) s
• ​Extremely Low Current Consumption (13㎂ operating)
• ​Enhanced Accuracy of RH% (±2%RH, 14bit )
• ​Fast Natural Recovery after Reflow Soldering

  • Model Number: HCS2D-3V
  • Data Sheet: Date Sheet File
Quantity:
- +
  • HumiChipⅡ (SIP Type)
Mouse over image to zoom

Product Specification

Product Summary:

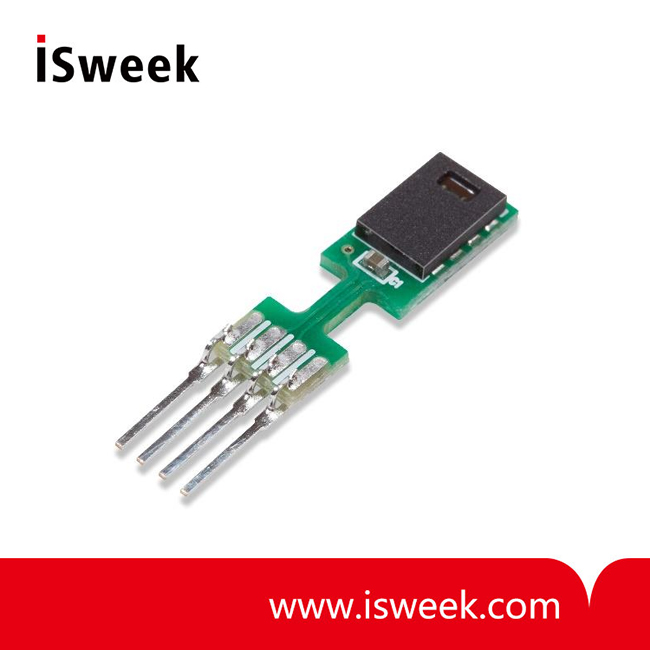

    HCS2D-3V is a Single In-Line Package type of HCS2D-3V with ready installed V-Core capacitor for easy and convenient application.

    HCS2D-3V is an improved version of HumiChip®, the most advanced and cost effective humidity and temperature sensing solution for virtually any type of applications.

    Capacitive polymer sensor chip developed and fabricated in-house and CMOS integrated circuit with EEPROM are integrated into one embedded system in a reflow solder-able SMD package.

    Individually calibrated and tested, HCS2D-3V performs ±2% from 20% to 80%RH (±4% over entire humidity range), and yet, is simple and ready to use without further calibration or temperature compensation.



Enhanced Features:

• Fully Calibrated & Temperature Compensated

• Improved Temperature Accuracy & Range (±0.2for ­20 ~ 60) s

• Extremely Low Current Consumption (13operating)

• Enhanced Accuracy of RH% (±2%RH, 14bit )

• Fast Natural Recovery after Reflow Soldering

• Low Current Consumption

• SIP(Single-In-line-Package)

• Enhanced Reliability against Chemical



Application:


• Energy Saving HVAC Control

Air Conditioning, Refrigeration, IAQ monitoring,Vent Fans, Home Appliances, Humi/Dehumidifiers

• Process Control & Instrumentations

Medical Instruments, Handheld Devices, Weather Stations, Food Processing, Printers, RFIDs

• Automobile & Transportation

Cabin Climate Control, Defogging Control

Condensing Preventive Device ,

• Mass Quantity Application

OEM custom specification available



Sensor Performance:

Relative Humidity (%RH)



Resolution

14 bit (0.01%RH)

Accuracy

±2.0 %RH (Figure 1)

Repeatability

±0.2 %RH

Hysteresis

±1.5 %RH

Linearity

<2.0 %RH

Response time

Max 8.0 sec (t 63%)

Operating range

0 ~ 100 %RH (Non-Condensing)

Long term drift

<0.5 %RH/yr (Normal condition)



Temperature (℃)



Resolution

14 bit (0.01)

Accuracy

±0.2

Repeatability

±0.1

Response time

10.0 sec (t 63%)

Operating range

-40 ~ 125

Long term drift

<0.5 %RH/yr (Normal condition)
