Loop-Powered AC Voltage Transmitter - Single Element - CR4620

• ​Voltage Type: AC Voltage
• ​Frequency: AC Frequency
• ​RMS: Average RMS
• ​Elements: Single Element
• ​Outputs: 4-20 mA DC
• ​Power: Loop Powered
• ​Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR4620
  • Data Sheet: Date Sheet File
- +

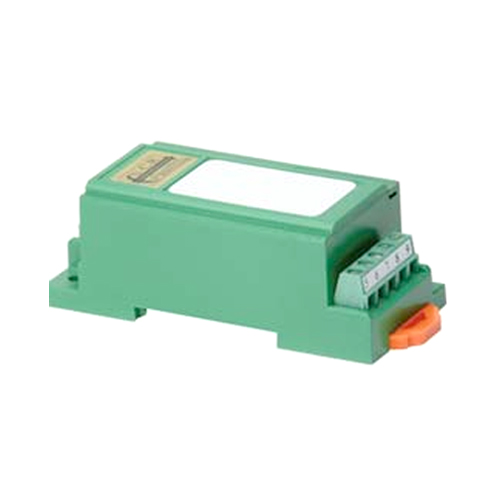

  • Loop-Powered AC Voltage Transmitter - Single Element
Mouse over image to zoom

Product Specification

CR4620 Loop-Powered AC Voltage Transmitters are designed to provide a 4 - 20 mA DC output that is proportional to the average RMS AC voltage input. These devices are best suited for general applications, such as fixed frequency voltage supplies.

CR4620 AC Voltage Transmitter Features
• DIN Rail or Panel Mount
• One or two element
• Connection diagram printed on case
• Outputs isolated from inputs

CR4620 AC Voltage Transmitter Specifications
• Response Time: 250 ms
• MTBF: Greater than 100 K hours
• Operating Temperature: 0°C to +50°C
• Output Load: 0 - 300 ohm
• Frequency Range: 50 Hz - 400 Hz
• Loop Voltage: 24 VDC
• Power Source: Loop Powered
• Insulation Voltage: 2500 VDC
• Thermal Drift: 500 PPM/°C
• Calibration: Average Sensing, RMS Calibrated
• Basic Accuracy: 0.5%

CR4620 AC Voltage Transmitter Applications
• Monitor for over/under voltage
• Power monitoring
• Multi-point instrumentation needs
• Sense phase loss

CR4620 AC Voltage Transmitter PART NUMBERS
