Memosens pH Sensor - SE 515

- pH: 0 - 14
- Temperature: -5 ~ 80 °C
- Pressure: Max. 4 bars
- Temperature detector: NTC 30 kohms
- Reference system: Ag/AgCl, gel electrolyte
- Length: 120 mm edge length
- Sensor cap: Memosens
- Precalibration in the lab
- Digital data transfer

  • Model Number: SE 515
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Memosens pH Sensor
  • Memosens pH Sensor
Mouse over image to zoom

Product Specification

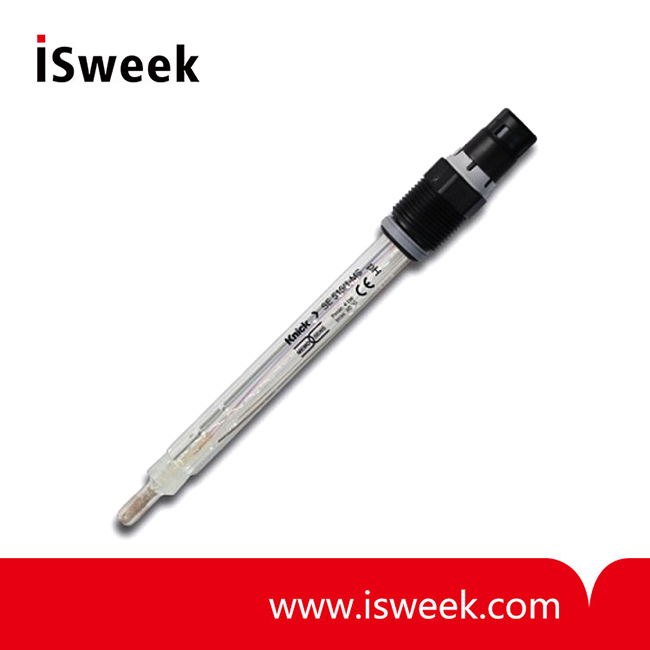

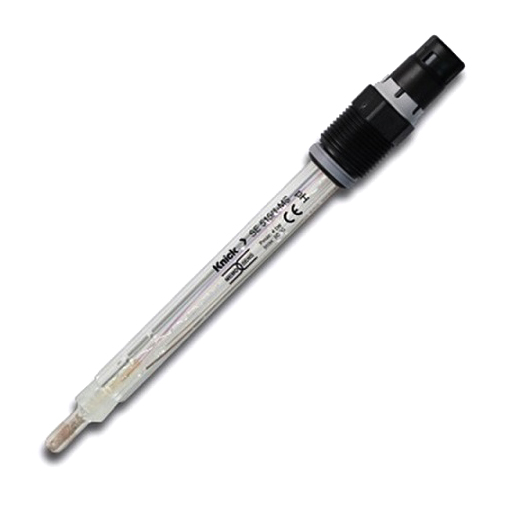

SE 515 Memosens pH Sensor

Reasonably priced sensor for water and wastewater treatment


Thanks to its ground-glass sleeve junction even applicable in heavily contaminated media. Designed for MemoRail applications. High stability and a long life cycle are achieved by the special design.

Through a ground-glass sleeve junction the reference system is in direct contact with the measured medium. There is hardly any risk of contamination or blocking of the junction. Measurement is possible even at low temperatures thanks to a special low-impedance glass.


SE 515 Memosens pH Sensor Facts
- Perfect galvanic isolation thanks to Memosens technology
- No influence of humidity in the connector
- Precalibration in the lab
- Digital data transfer
- Integrated sensor diagnostics
- Low maintenance, no refilling of electrolyte
- Integrated temperature detector
- Ground-glass sleeve junction

SE 515 Memosens pH Sensor Applications
Water/wastewater treatment.


SE 515 Memosens pH Sensor Specifications

pH 0 - 14
Temperature -5 ~ 80 °C
Pressure Max. 4 bars
Temperature detector NTC 30 kohms
Sensor material Low-impedance standard pH glass
Reference system Ag/AgCl, gel electrolyte
Junction Ground glass sleeve
Length 120 mm edge length
Process adaptation Pg 13.5
Sensor cap Memosens
