Multi-Channel Anemomaster Anemometer - 1550/1560 Series

• Resolution​: 0.01 m/s​
• Resolution​: 0.1°C​
• Resolution​: 0.1% RH​
• Interface​:
RS232C for PC Connection & Cascade Option​
​Centronics for Printer Output​
• Analog Output: 0 to 5V Option with D/A Module
• Power Supply: AC Adapter

  • Model Number: 1550/1560 Series
  • Data Sheet: Date Sheet File
Quantity:
- +

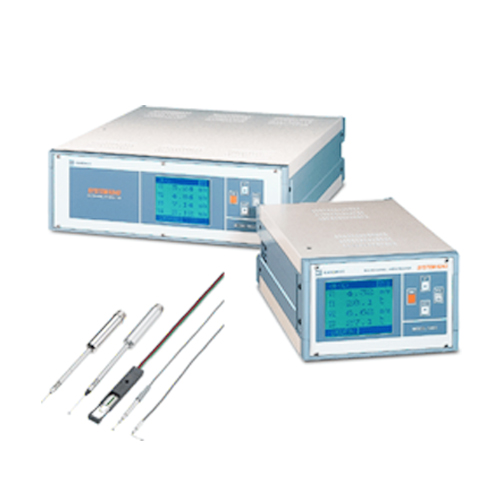

  • Multi-Channel Anemomaster Anemometer
  • Multi-Channel Anemomaster Anemometer
Mouse over image to zoom

Product Specification

Multi-Channel Anemometer
1550/1560 Series

1550/1560 Anemometer is a research-grade instrument designed for high performance precise measurements.

When coupled with our highly accurate probes this multi-channel anemometer deliver a scaleable system.

The Kanomax 1550 & 1560  house modules bays for the connection of up to 24 channels (model 1560) or 64 channels (model 1550) of simultaneous air velocity measurements.

Each bay accepts one of five unique modules allowing for a wide variety of custom configurations for air velocity, temperature, and humidity measurement.

Multiple probes ( Air Velocity, Temperature & Humidity ) are available
For a larger system, you can connect up to 5 units in a cascade for up to 320 air velocity channels and transfer the data to your company computer.

Both units feature a bright LCD display that reveals  the data from each channel.

Burst mode allows you to output the data of all channels at high speed and and decide which probe to query and send data from.

1550/1560 Series Multi-Channel Anemometer Features & Benefits
• Flexibility in system configuration means greater freedom, simplicity, and efficiency
• One unit of model 1550 holds up to 64 channels
• Over 13 compatible probes in a variety of shapes and configurations
• Combine modules as needed to design the perfect customized multi-channel system for your specific application
• Expandable system: more modules can be added as needed

1550/1560 Series Multi-Channel Anemometer Applications
• Evaluate cooling efficiency in the electronic device
• Aerodynamics Research
• Production Control
• Product Development

1550/1560 Series Multi-Channel Anemometer Main Unit Specifications

Model
1550
1560
Air Velocity Ranges
Varies by probe, see below for probe specifications
Resolution
0.01 m/s
Temperature Ranges
Varies by probe, see below for probe specifications
Resolution
0.1°C
Relative Humidity Ranges
Varies by probe, see below for probe specifications
Resolution
0.1% RH
Interface
RS232C for PC Connection & Cascade Option
Centronics for Printer Output
Analog Output
0 to 5V *Option with D/A Module
Power Supply
AC Adapter
Dimensions
19.6" x 5.5" x 16.9"
8.9" x 5.5" x 12.8"
Weight
22 lbs (10 kg)
11 lbs (5 kg)

1550/1560 Series Multi-Channel Anemometer Probe Specifications
Model
Probe Type
Velocity Range
Temp. Range
RH Range
Primary Feature
0962-00
Uni-Directional
20-9840 fpm (0.10-50.0 m/s)
n/a
n/a
tip is designed so it can
easily be mounted in place

0963-00
Uni-Directional
20-9840 fpm (0.10-50.0 m/s)
n/a
n/a
basic probe
0965-00
Omni-Directional
20-4920 fpm (0.10-25.0 m/s
n/a
n/a
spherical-tip probe with horn
0965-01
Omni-Directional
20-4920 fpm (0.10-25.0 m/s
n/a
n/a
spherical-tip probe (no horn)
0965-03
Omni-Directional
20-4920 fpm (0.10-25.0 m/s
n/a
n/a
miniature i-shaped probe
0965-04
Omni-Directional
20-4920 fpm (0.10-25.0 m/s
n/a
n/a
miniature L-shaped probe
0965-07
Omni-Directional
20-4920 fpm (0.10-25.0 m/s
n/a
n/a
miniature i-shaped probe,
with independent temperature
compensation

0965-08
Omni-Directional
20-4920 fpm (0.10-25.0 m/s
n/a
n/a
miniature L-shaped probe,
with independent temperature
compensation

0965-09
Omni-Directional
20-9840 fpm (0.10-50.0 m/s)
n/a
n/a
spherical-tip probe, 80mm long
0965-10
Omni-Directional
20-9840 fpm (0.10-50.0 m/s)
n/a
n/a
spherical-tip probe, 400 mm long
0962-21
Uni-Directional
20-9840 fpm (0.10-50.0 m/s)
32-212°F (0-100°C)
n/a
tip is designed so it can
easily be mounted in place,
with temp. sensor

0963-21
Uni-Directional
20-9840 fpm (0.10-50.0 m/s)
32-212°F (0-100°C)
n/a
basic probe with temp. sensor
0965-21
Omni-Directiona
20-9840 fpm (0.10-50.0 m/s)
32-212°F (0-100°C)
n/a
spherical-tip probe
with temp. sensor

0963-31
Uni-Directional
20-9840 fpm (0.10-50.0 m/s)
32-212°F (0-100°C)
5.0-95.0%
basic probe with
temp. & RH sensors

0965-31
Omni-Directiona
20-9840 fpm (0.10-50.0 m/s)
32-212°F (0-100°C)
5.0-95.0%
spherical-tip probe
with temp. & RH sensor
