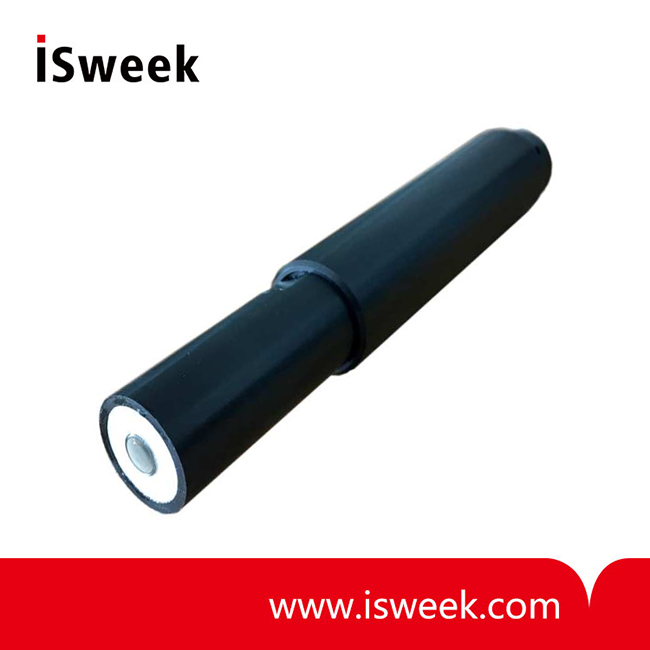

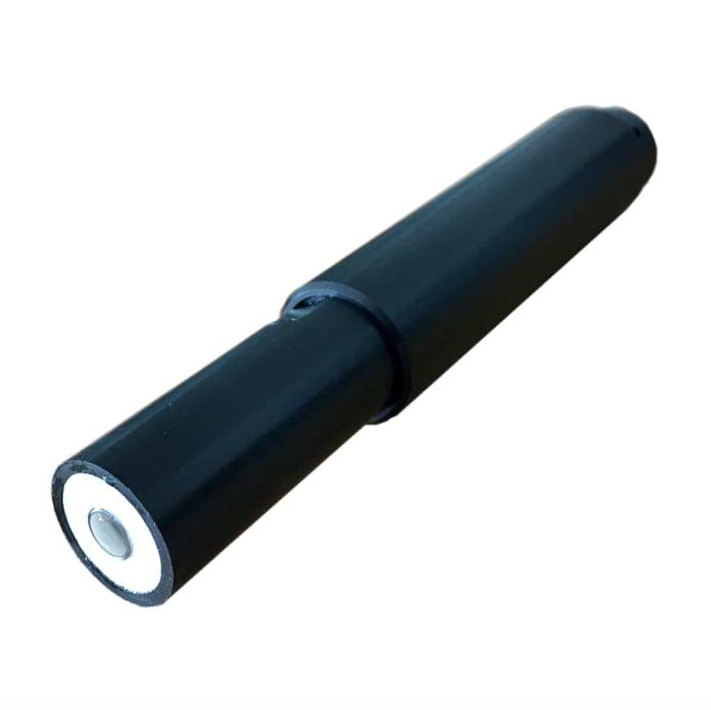

Online Digital pH Sensor - Y532-B

​• ​Range: 2-12 pH
​• ​Accuracy: ±0.1 pH
​• ​Housing IP Rating: IP68
​• ​Depth Rating: 10m​
​• ​Operation Temperature: 0 ~ 50℃
​• ​Interface: RS-485, MODBUS protocols​
​• ​Power Requirements: DC 5~12V, current <50mA

  • Model Number: Y532-B
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Online Digital pH Sensor
  • Online Digital pH Sensor
Mouse over image to zoom

Product Specification

Y532-B pH Sensor Description
Y532-B is a general purpose digital pH sensor, which uses a rugged industrial electrode and a built-in temperature sensor for automatic temperature compensation, and supports RS485 Modbus digital output. It is ideal for long-term online monitoring.

Y532-B pH Sensor Specifications
• Range: 2-12 pH
• Accuracy: 0.1 pH
• Operation Temperature: 0~50 ℃; Built-in temperature sensor
• Automatic temperature compensation
• Depth Rating: IP68, 10 m immersion
• Digital Outpu

Y532-B pH Sensor Technical Specifications

Item
Specification
Range
2-12 pH
Accuracy
±0.1 pH
Housing IP Rating
IP68 (completed electrode assembly)
Depth Rating
10m
Storage Temperature
0~60℃
Operation Temperature
0 ~ 50℃
Interface
RS-485, MODBUS protocols
Assembly
submersible
Power Requirements
DC 5~12V, current <50mA
Sensor OD
26 mm
Sensor Length
167.5 mm
Cable Length
10m standard; 5m, 15m or 30m optional
Body Materials
POM, 316L
Calibration
Three points
