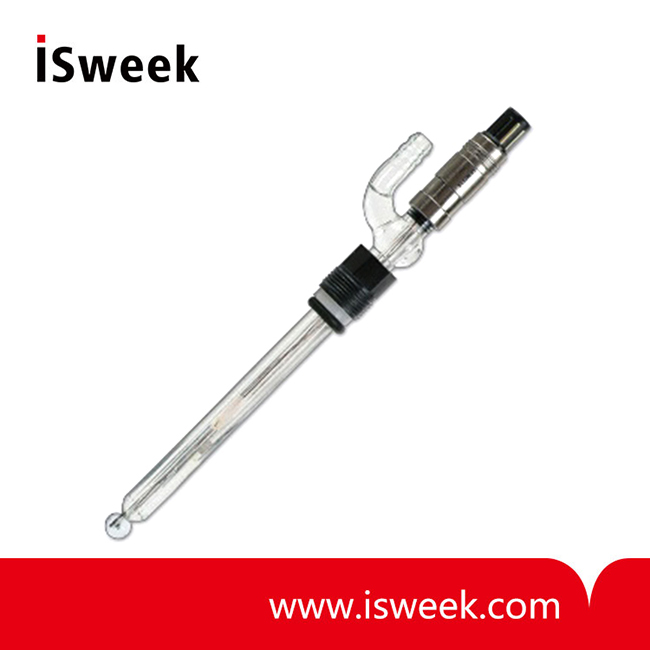

pH Sensor - SE 560

- pH: 0 ~ 14
- Temperature: -20 ~ +80℃
- Pressure: Unpressurized
- Temperature detector: Pt 1000
- Integrated temperature detector
- Measurement at low temperatures
- 3 ceramic junctions
- VP screw cap

  • Model Number: SE 560
  • Data Sheet: Date Sheet File
Quantity:
- +
  • pH Sensor
  • pH Sensor
Mouse over image to zoom

Product Specification

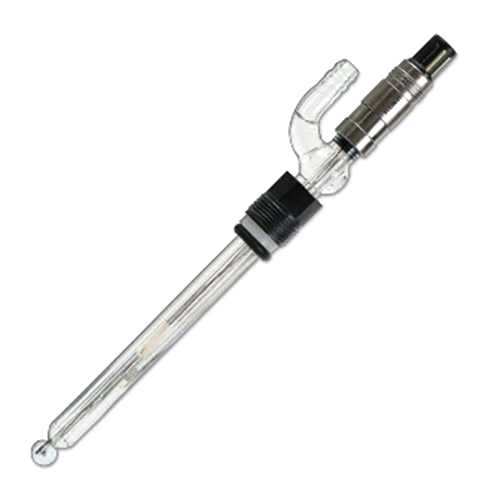

SE 560 pH Sensor
For low-conductivity media or low temperatures, refillable liquid electrolyte

Precise measurements due to self-cleaning junctions with high outflow of electrolyte even for media of very low conductivity. Measurement at low temperatures possible thanks to a special low-impedance glass.

SE 560 pH Sensor Applications
Ultrapure water, drinking water, boiler feed water in power plants, cooling brine

SE 560 pH Sensor Facts
 - Precise measurement under difficult conditions (low conductivity, contaminations)
 - Integrated temperature detector
 - Measurement at low temperatures
 - 3 ceramic junctions
 - VP screw cap

SE 560 pH Sensor Specifications

pH

 0 ~ 14

Temperature

 -20 ~ +80℃

Pressure

 Unpressurized

Temperature detector

 Pt 1000

Sensor material

 Low-impedance standard pH glass, fast response

Reference system

 Liquid electrolyte, refillable, Ag/AgCl system

Junction

 Platinum (3 x)

Immersion depth

 120 mm

Sensor cap

 VP (VarioPin)
