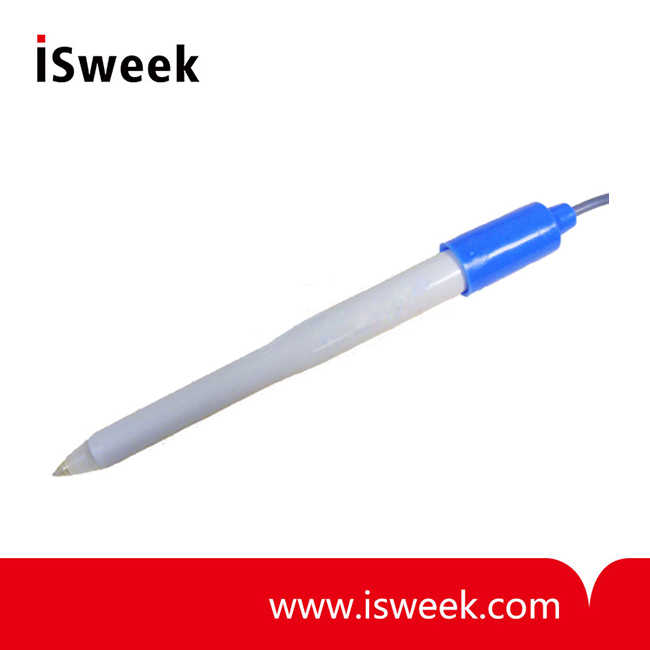

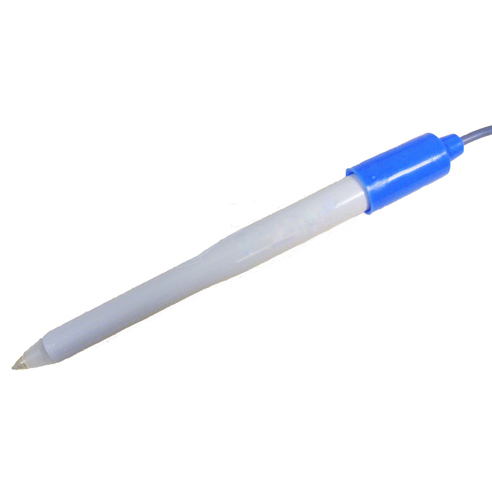

Spear Tip Piercing pH Electrode - S175CD

• pH Measuring Range: 0-14 pH Na+ error >12.3 pH)
• Wetted Materials: PEI, PVDF, pH Glass
• Max Temperature: 100 degrees C
• Cable Length: 30 inches
• Connectors: choice of BNC, (US Std, DIN at addiional cost)
• Response Speed pH: >90% in 5-7 seconds

Model Number: S175CD
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Spear Tip Piercing pH Electrode

Item No.: S175CD

S175CD Spear Tip Piercing pH Electrode Features
• Use with any pH meter
• Durable PEI body construction
• Shipped in soaking solution ready for immediate use
• Great for meat and cheese pH measurement
• Gel filled reference and double junction

S175CD Spear Tip Piercing pH Electrode Description

A Rugged Spear Tip electrode for penetration pH measurements! The Model S175CD pH electrode is ideal for measuring the pH of semi-solid material samples.

The S175CD spear tip combination pH electrode is perfect for those pH measurements in applications where sample piercing is required. Meat, sausage, cheese and soil are ideal applications.

The electrode features an extremely durable glass measuring spear shaped tip, packaged in a rugged , virtually unbreakable PEI body. A double junction reference design is provided for protection from contaminating samples and will provide extended service life when used with samples containing silver ions. The junction utilizes an extended surface area Semi-Porous PVDF (Kynar) thermoplastic to provide excellent sample contact.

S175CD Spear Tip Piercing pH Electrode Specifications

pH Measuring Range	0-14 pH Na+ error >12.3 pH)
Wetted Materials	PEI, PVDF, pH Glass
Max Temperature	100 degrees C
Cable Length	30 inches
Connectors	choice of BNC, (US Std, DIN at addiional cost)
Response Speed pH	>90% in 5-7 seconds
