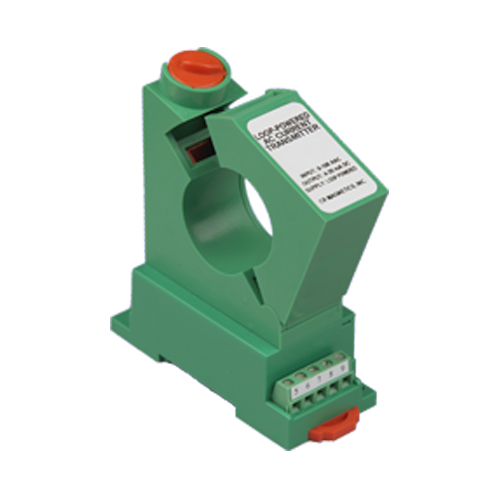

Split Core Current Transducers - CR4410S

• Current: AC Current
• Frequency: AC Frequency
• Split Core: True
• RMS: Average RMS
• Elements: Single Element
• Outputs: 0-5 VDC
• Power: 24 Vdc Power
• Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR4410S
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Split Core Current Transducers
Mouse over image to zoom

Product Specification

The CR4410S Series Average RMS Current Transducers and Transmitters are designed to provide a calibrated DC output proportional to the AC current input. Designed for multi-point current sensing, these devices provide excellent features in a high value package. Average RMS is recommended when sensing current waveforms that have a fixed frequency, and are usually for loads operated from standard utility power.

CR4410S Split Core Current Transducers Features
• Analog 0-5 Vdc output
• 24 Vdc powered
• Use with external current transformers
• Highest precision available
• Connection diagram printed on case

CR4410S Split Core Current Transducers Specifications
• Basic Accuracy: 0.5%
• Calibration: Average Sensing, RMS Calibrated
• Thermal Drift: 500 PPM/°C
• Operating Temperature: 0°C to +60°C
• Installation Category: CAT II
• Polution Degree: 2
• Insulation Voltage: 2500 Vdc
• Altitude: 2000 meter max.
• Frequency Range: 50 Hz - 400 Hz
• MTBF: Greater than 100 K hours
• Cleaning: Water-dampened cloth
• Supply Voltage: 24 Vdc ±10%
• Output Load: 2kΩ or Greater
• Response Time: 250 ms max. 0-90% FS
• Relative Humidity: 80% for temperatures up to 31°C and decreasing linearly to 50% at 40°C

CR4410S Split Core Current Transducers Applications
• Multi-point current sensing and control panels
• Monitor Motor Faults
• Monitor Heating Elements
• Monitor Lighting Elements

CR4410S Split Core Current Transducers PART NUMBERS
