STEPPIII Evalkit - Eval-01

STEPPIII Evalkit provides all of the necessary hardware, software and documentation to effectively operate and evaluate the performance and suitability of STEPPIII unit. With EVALKIT System Integrators and Developers can develop their own customized embedded application. EVALKIT is shipped pre-configured. The included EVALBORD offers a series of switches, LEDs and interfaces used to test the factory preloaded and your own configuration.

  • Model Number: Eval-01
Quantity:
- +
  • STEPPIII Evalkit
  • STEPPIII Evalkit
  • STEPPIII Evalkit
Mouse over image to zoom

Product Specification

STEPPIII Evalkit

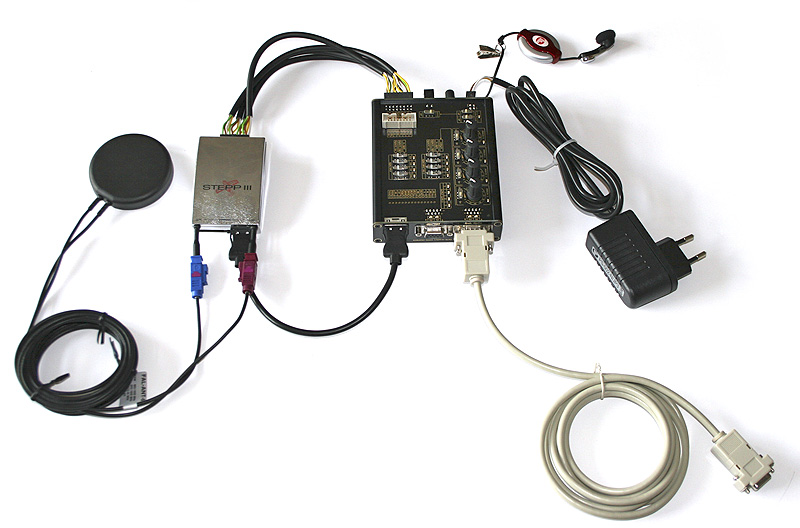

provides all of the necessary hardware, software and documentation to effectively operate and evaluate the performance and suitability of STEPPIII unit. With EVALKIT System Integrators and Developers can develop their own customized embedded application. EVALKIT is shipped pre-configured. The included EVALBORD offers a series of switches, LEDs and interfaces used to test the factory preloaded and your own configuration.


The factory preloaded configuration enables you to test the system and see how the STEPPIII works when using web-based applications. Only a computer (PC client) connected to the internet with a pre-installed standard web browser is necessary from the user side.


After completing the installation of the EVALKIT with the preloaded configuration (without any users changes) the STEPPIII will connect automatically to the FALCOM application server that provides two-way communication in real time. User configuration can be accomplished both locally via serial interface and remotely via SMS, CSD or GPRS/internet.

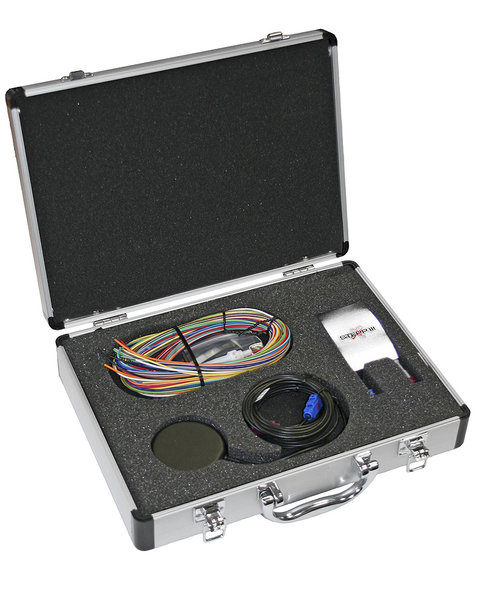

Content of Box 1

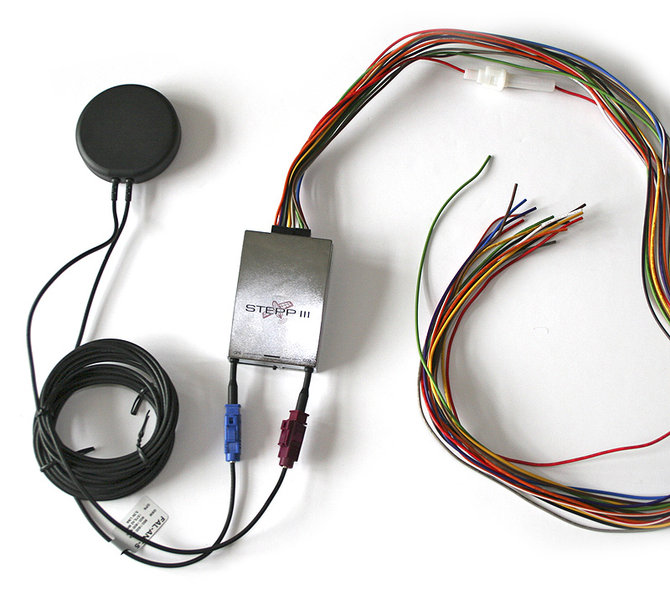

 • 1 x STEPPIII device
 • 1 x FAL-ANT 5 combined GSM/GPS antenna
 • 1 x Mounting cradle
 • 1 x Cable for automotive installation
 • 1 x Prepaid SIM card &
 • 6 month access to the trace4you server

Content of Box 2
 • 1 x Evalboard
 • 2 x Connection cables
 • 1 x Serial 9pin cable
 • 1 x Headset
 • 1 x EU Power supply
 • 1 x US adapter
 • 1 x UK adapter
 • 1 x Software & documentation CD-ROM
