STs Series Conductivity Sensor - 4102 Conductivity

• 4-cell electrode measuring conductivity, total dissolved solids (TDS), or salinity depending on scaling with datalogger or remote telemetry unit (RTU)
• Secondary 0-50°C temperature sensor
• 2-wire, 4-20 mA analog outputs compatible with many dataloggers or RTUs
• Narrow diameter (0.75 inches or 1.9 cm) for groundwater monitoring applications
• Holds calibration for months at a time
• Low power usage

  • Model Number: 4102 Conductivity
  • Data Sheet: Date Sheet File
Quantity:
- +

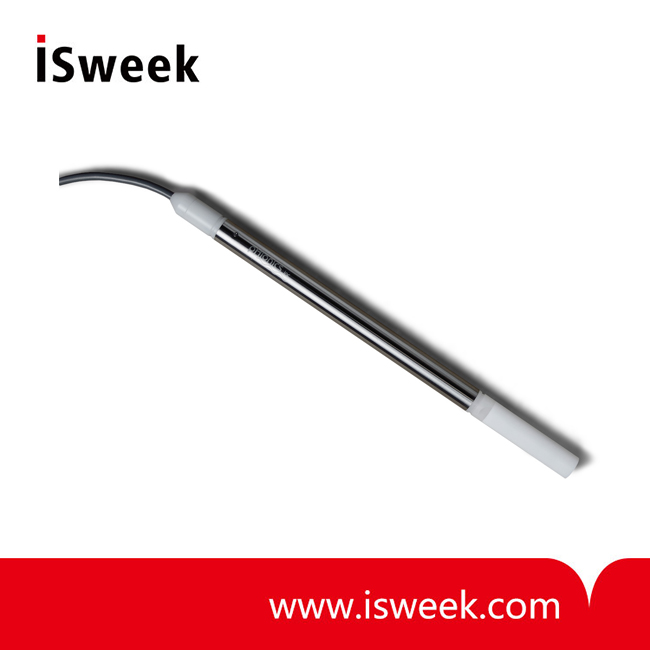

  • STs Series Conductivity Sensor
Mouse over image to zoom

Product Specification

Description:

    The pHionics STs SeriesConductivity is a water quality sensor designed to pair with a datalogger or RTU for real-time data capture. A narrow diameter allows the STs Series to go places others cant while the chemical-resistant housing ensures the sensor can stay there for many years.  Proprietary electrode technology provides stable measurements to reduce calibration frequency.

    All parts, including the cable, are easily replaceable without tools using pHionics patented pHiConnSystem, saving frustration and money.

    In addition, isolation, differential amplification, and shielding ensure a strong signal with high signal-noise ratios, all while remaining low-power.

    These features make our conductivity sensor well-suited for applications such as groundwater monitoring, wastewater treatment, aquaculture, pollution monitoring, etc.



Highlighted Features:

4-cell electrode measuring conductivity, total dissolved solids (TDS), or salinity depending on scaling with datalogger or remote telemetry unit (RTU)

Secondary 0-50°C temperature sensor

2-wire, 4-20 mA analog outputs compatible with many dataloggers or RTUs

Narrow diameter (0.75 inches or 1.9 cm) for groundwater monitoring applications

Holds calibration for months at a time

Low power usage



Applications:

Groundwater Monitoring

    o Saltwater intrusion

    o Agricultural Runoff

    o Mining Pollution

Industrial Effluent Monitoring

Wastewater Treatment

Environmental Remediation

Aquaculture



Specifications:

Conductivity Sensor

Output

4-20 mA

Conductivity Range

0-100,000 µS

Electrode Type

4-cell

Transmitter Type

2-wire

Automatic Temperature Compensation

2% per

Power Supply Voltage

8-40 VDC

Response time

95% < 5 seconds

Pressure Range

0-70 psi

Wetted Materials

316 SS, Delrin®, Viton, PVDF

Length

14.50 in (36.83 cm)

Width

0.75 in (1.90 cm) maximum

Weight (No cable)

0.50 lbs (0.227 kg)

Linearity

± 1.00% of full scale*

Accuracy

± 1.00% of full scale*

Sensitivity

± 0.05% of full scale

Temperature Sensor

Output

4-20 mA

Temperature Range

0-50

Accuracy

+/- 1

Linearity

+/- 0.5

Power Supply Voltage

7-40 VDC

Cable

Cable Material

Polyurethane

Type

4 conductor, Kevlar® reinforced, water blocked, shielded, twisted-pair wiring

Maximum Distance

3 miles

Resistance per 1000 ft (304.8 m)

26 Ohms

Replaceable?

Yes

*After proper calibration
