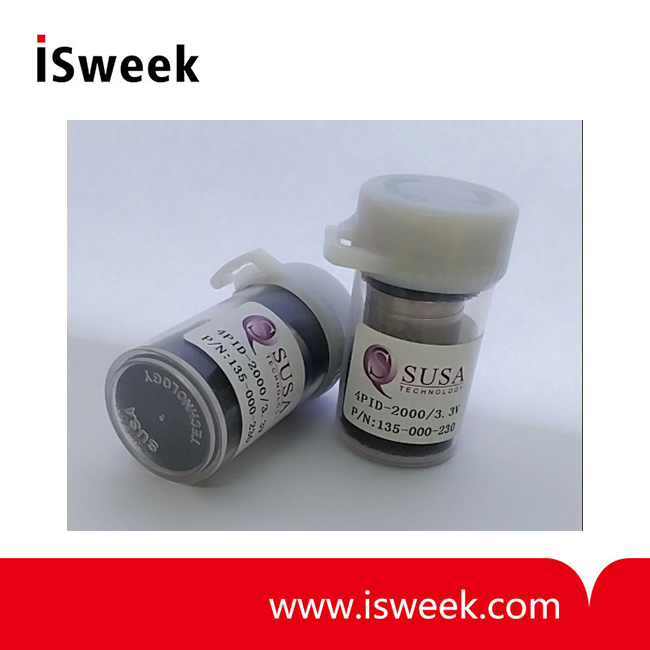

SUSA PID sensor - 4PID-2000 3.3V-plus

SUSA PID sensor contains the miniature UV lamp, high sensitivity with low noise electronic components and integrated ionization chamber.

Model Number: 4PID-2000 3.3V-plus
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SUSA PID sensor contains the miniature UV lamp, high sensitivity with low noise electronic components and integrated ionization chamber. The standard 4 series compact structure is designed for different application purposes, such as portable, fixed detectors, as well as analyzers. It offers a wide detection range, up to 10000ppm(IBE equivalent) and 5ppb resolution.

Performance
Operating Principle	Photo Ionisation Detector
Detection Range	0~10000ppm（max）
Resolution	5ppb-2000ppb
Repeatability	< ±2%
Operating Temp Range	-40~50℃
Operating Humidity Range	0~99%RH non-condensing
Operating Pressure Range	800~1200 mbar
Electrical
Operating Voltage	3.3±0.1V
Zero	60±20mV
Output Signal	2.0±0.5V
Security Certificate	Pending
Lifetime
Storage Temp	0~20℃
Expected Operating Life	36 months in air
Lamp Operating Life	24 months lit hours
Standard Warranty	12 months
