The Advanced Vehicle Tracking System - FOX-IN

GSM/GPRS technology for 2-way communication
Latest GPS technology for positioning
Compact, low-cost and light-weight unit
Multi-function I/Os
Data-Logger functionality
Powered from vehicle main battery
RFID and sensor-based application
Wireless communication via Bluetooth® (SPP)
CAN/FMS interface, OBD II (On-Board Diagnostics)
Internal GSM/GPS antennas

  • Model Number: FOX-IN
Quantity:
- +

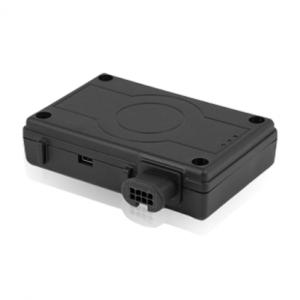

  • The Advanced Vehicle Tracking System
Mouse over image to zoom

Product Specification

FOX-IN -The Advanced Vehicle Tracking System


PRODUCT OVERVIEW

FOX-IN is a free configurable smart tracking device which can be fully adapted to user requirements. Its main purpose is to act as a mobile client for various system solutions like AVL, fleet management, vehicle security and recovery. The device can operate fully autonomous and it is able to interact using sensors and actors.

It can be adapted to existing tracking solutions and can be easily configured to gather or exchange relevant information with servers or users directly. An often used example is to send status reports or verbose alert messages directly via SMS to users and/or via TCP to tracking servers. Users benefit most from combining comfort and security aspects - for example having regular voice calls as well as spy calls in emergency cases. Drivers logbook and data logging functionalities are combined in the history feature.

Geofencing can be used to report violations of predefined routes or areas (for example if a car enters or leaves a specific Area/Geo-fence). All of these features are perfectly integrated in a device concept which significantly reduces time-to-market and provides low cost tracking and security solutions.

PRODUCT HIGHLIGHTS
  • GSM/GPRS technology for 2-way communication
  • Latest GPS technology for positioning
  • Compact, low-cost and light-weight unit
  • Delivers high performance and very flexible applications
  • Customized firmware configuration
  • Different communication channels
  • Multi-function I/Os
  • 3D accelerometer detecting movements of assets
  • Wide variety of events and states for sending reports
  • Allows to create customized protocols
  • Data-Logger functionality
  • Powered from vehicle main battery
  • Backup battery* to back up the main power supply
  • Custom housing and packaging design possible
  • RFID and sensor-based application
  • Wireless communication via Bluetooth® (SPP)*
  • CAN/FMS interface*, OBD II (On-Board Diagnostics)*
  • Expandable via MINI IO BOX*
  • Internal GSM/GPS antennas
  • E1/CE approved

APPLICATIONS
  • Real time online tracking
  • Fleet management / monitoring
  • Security / emergency services
  • Real time satellite navigation
  • Territory management
  • Personalized drivers logbook
  • Route verifcation
  • Trip management / distance calculations
  • Theft protection
  • Toll collection / pay as you drive (PAYD)
  • Compatible with FALCOM trace4you server (also configurable for most of TCP/IP server-based tracking applications)


Facts

GSM/GPRS core Quad band module
850/900/1800/1900 MHz
GPRS class 10, class B
TCP/IP (accessible via PFAL commands)
GPS core 50 channel GPS receiver
AGPS Offline / Autonomous
Protocols: NMEA, GGA, GGL, GSA, GSV, RMC, WGS-84
Accuracy:
- Position: 2.5 m
- SBAS: 2 m
Acquisition:
- TTFF: 29 s average
Sensitivity:
- Cold Starts: -148 dBm
- Tracking: -162 dBm
Limits:
- Velocity: 500 m/s (972 knots)
- Altitude: 50.000 m
- Update rate: 1 Hz
Processor core ARM7/TDMI
8 MB Flash / 2 MB RAM
Electrical characteristics Power: +10,8 V to +32 V DC
Rechargeable Li-Polymer backup battery 1000mA*
Physical characteristics Dimensions (LxWxH): 100 x 65 x 24 mm
Weight: approx. 105 g
Temperature range** Storage: -40 °C to +85 °C
Operating: -40 ° to +85 °C
GSM: -40 °C to +85 °C
Battery option: -20 °C to +60 °C
Charging: 0 ° to +45 °C
Motion sensor 3-axis motion sensor
Interfaces 4 IOs
- 3 configurable digital/analoge inputs with open collector output (100 mA) / (2 are used for CAN feature)
- 1 digital input (IGN)
RS232 (RX, TX V24 level)
SIM card reader for 1,8/3 V SIM cards
CAN/FMS*
3 programmbale LEDs
Bluetooth*
Audio interface* (Speaker, Microphone)
Antennas internal antennas for GSM, GPS, Bluetooth*

____________________________________

* optional availbale

** The GSM/GPRS module is fully functional (-20 °C to + 55 °C meets the 3GPP specifications).
