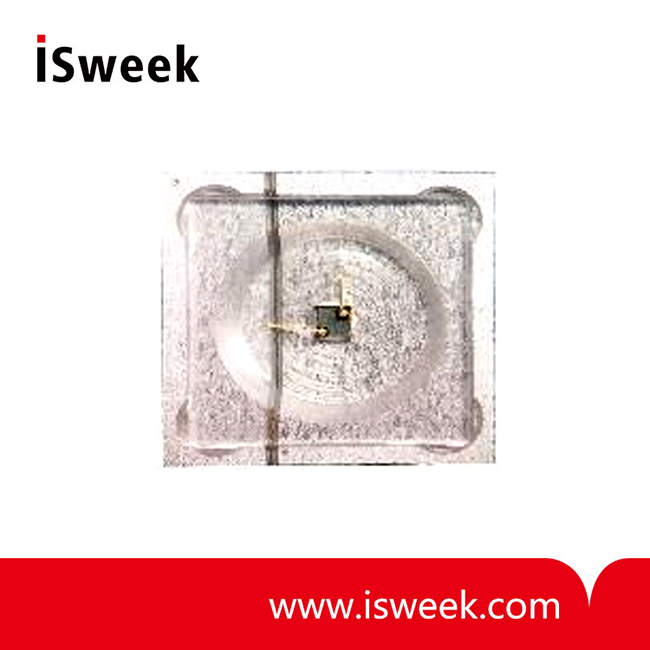

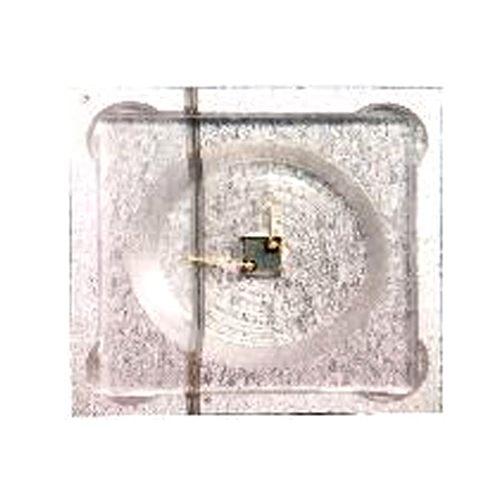

UV-B Sensor - GUVB-S31GD

Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
Responsivity: 0.14A/W
Spectral Detection Range: 220~320nm

  • Model Number: GUVB-S31GD
  • Data Sheet: Date Sheet File
Quantity:
- +
  • UV-B Sensor
  • UV-B Sensor
Mouse over image to zoom

Product Specification

1. GUVB-S31GD UV Sensor Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current

2. GUVB-S31GD UV Sensor Applications
UV-B Lamp Monitoring
UV Index Monitoring

3. GUVB-S31GD UV Sensor Outline Diagrams and Dimensions


4. GUVB-S31GD UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1µ~100m W/cm2
Soldering Temperature: 260℃

5. GUVB-S31GD UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 80nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.14A/W
Spectral Detection Range: 220~320nm
Active area: 0.076mm2
