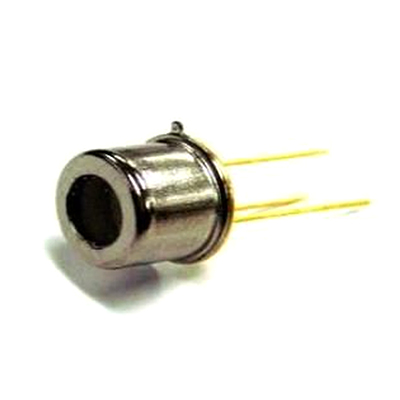

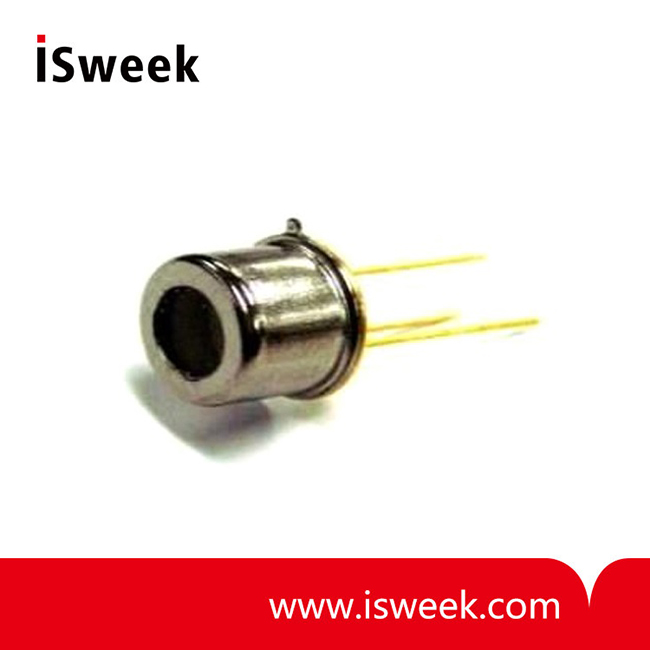

UV-C Sensor - GUVC-T20GD-U

- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Solar Blindness
- Responsivity: 0.06A/W
- Spectral Detection Range: 220~280nm
- Active area: 6.894mm2

Model Number: GUVC-T20GD-U
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

1. GUVC-T20GD-U UV Sensor Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Solar Blindness

2. GUVC-T20GD-U UV Sensor Applications
Pure UV-C Monitoring
Sterilization Lamp Monitoring

3. GUVC-T20GD-U UV Sensor Outline Diagrams and Dimensions

4. GUVC-T20GD-U UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 2V
Forward Current: 1mA
Optical Source Power Range: 0.001µ~100m W/cm²
Soldering Temperature: 260℃

5. GUVC-T20GD-U UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 90nA
Photo Current(Typ.): 3.25µA
Temperature Coefficient: -0.07%/℃
Responsivity: 0.06A/W
Spectral Detection Range: 220~280nm
Active area: 6.894mm²
