UV Radiometer 2.0 - GUVx-T1xGS2-3LW5.0
- Water Environments (10Bar)
- Fixing method: Panel Insertion
- Thread/Length for Mounting: PT 1/4"/12mm
- Power Consumption: max 5VA
- Detection Power Range: 0~100 ㎽/㎠
- Detection Wavelength Range:
GUVV-T11GS2-3LW5.0: 230~395nm
GUVB-T12GS2-3LW5.0: 220~320nm
GUVC-T11GS2-3LW5.0: 220~280nm
- Model Number: GUVx-T1xGS2-3LW5.0
- Data Sheet:
- Quantity:
- - +
Product Specification
GUVx-T1xGS2-3LW5.0 UV Radiometer 2.0 Applications
UV Purification (Water)
Water treatment
GUVx-T1xGS2-3LW5.0 UV Radiometer 2.0 Constitution

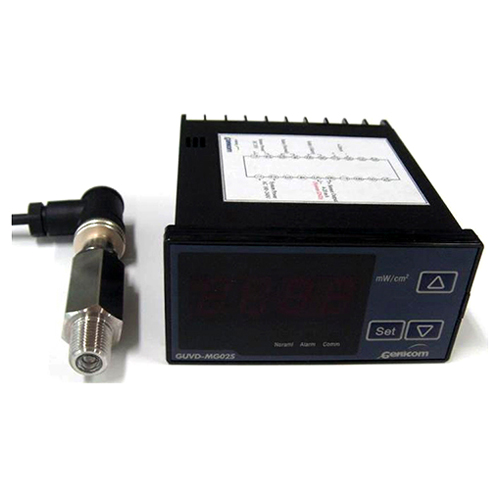

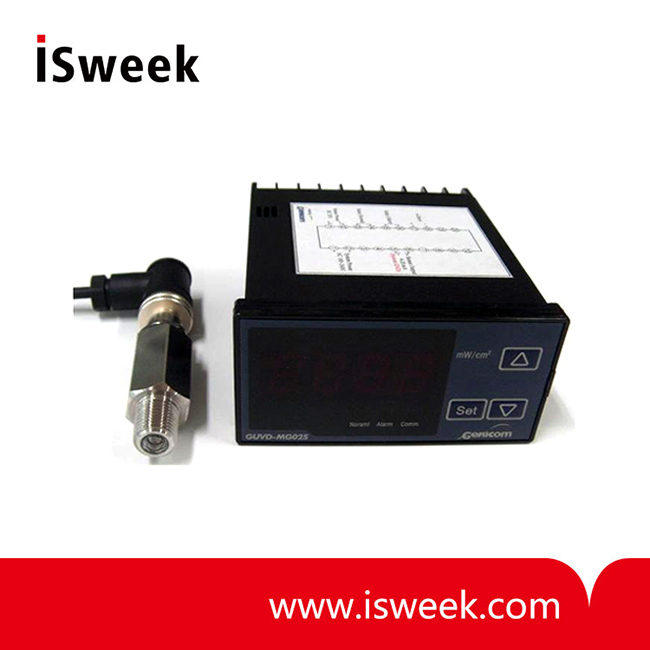

Display, Sensor Probe, 5m Cable
GUVx-T1xGS2-3LW5.0 UV Radiometer 2.0 Case dimensions
|
Thread/Length for Mounting |
Diameter (mm) |
Window (mm) |
Wrench Size (mm) |
Length (mm) |
Weight (g) |
Case Material |
| PT 1/4"/12 mm | 21 | 7 | 19 | 63 | 67 | STS 316-L |
GUVx-T1xGS2-3LW5.0 UV Radiometer 2.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
-30 |
|
85 |
°C |
Sensor Probe |
|
0 |
|
50 |
°C |
Display |
|
|
Power Consumption |
|
|
5 |
VA |
|
GUVx-T1xGS2-3LW5.0 UV Radiometer 2.0 Electro-Optical Characteristics (at 25°C)
|
Parameter |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max. |
||||
|
Detection Wavelength Range |
GUVV-T11GS2-3LW5.0 |
230 |
|
395 |
nm |
|
|
GUVB-T12GS2-3LW5.0 |
220 |
|
320 |
nm |
|
|
|
GUVC-T11GS2-3LW5.0 |
220 |
|
280 |
nm |
|
|
|
Detection Power Range |
0 |
|
100 |
mW/cm2 |
|
|
