UV Radiometer 4 - GUVx-T1xGS4-LA6

- UV Radiometer 4 is 3 Channel indicator.
- 3 type display, and 2 type output (Relay and 4-20mA).
- Detection Power Range: 0~100 ㎽/㎠
- Power Supply: AC 200 ~ 240V (50/60Hz)
- Detection Range:
GUVV-T10GS4-LA6: 230~395nm
GUVB-T11GS4-LA6: 220~320nm
GUVC-T10GS4-LA6: 220~280nm
GVBL-T12GS4-LA6: 330~445nm

  • Model Number: GUVx-T1xGS4-LA6
  • Data Sheet: Date Sheet File
Quantity:
- +

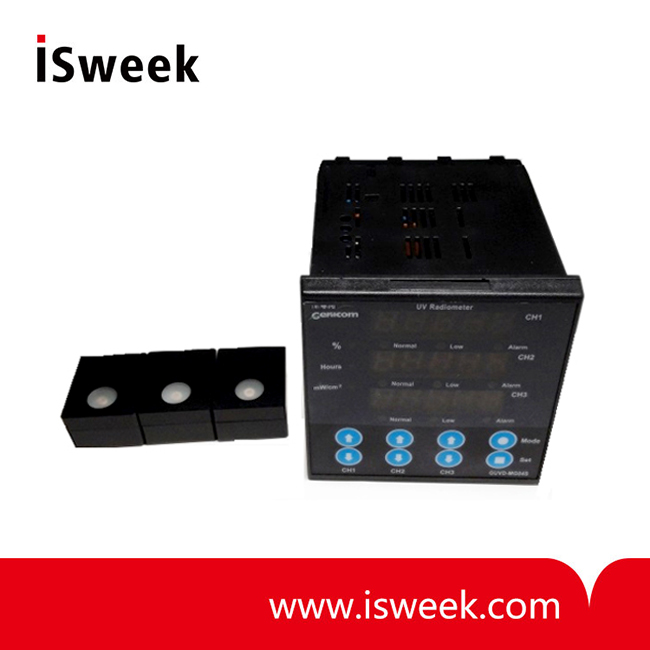

  • UV Radiometer 4

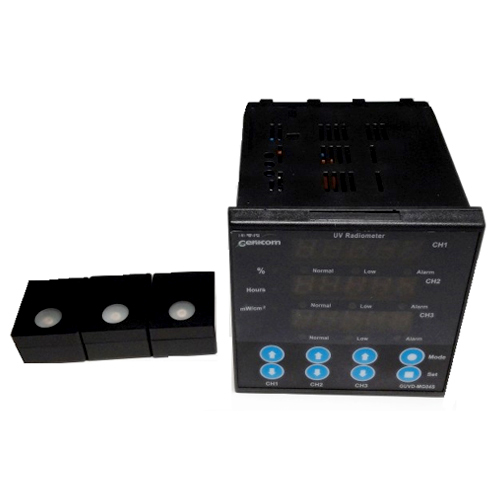

  • UV Radiometer 4
Mouse over image to zoom

Product Specification

GUVx-T1xGS4-LA6 UV Radiometer 4 Description
 UV Radiometer 4 is 3 Channel indicator. There are 3 type display, and 2 type output (Relay and 4-20mA).
 3 type display is the absolute power, relative power, and accumulative time.
 Adjustable output voltage (Sensor probe)

GUVx-T1xGS4-LA6 UV Radiometer 4 Applications
 UV Curing

GUVx-T1xGS4-LA6 UV Radiometer 4 Constitution
 Display, Sensor Probe 3 ea, Connection Cable 3 ea (5 m)

GUVx-T1xGS4-LA6 UV Radiometer 4 Sensor Probe Dimensions

Size (W×L×H, mm3)
Window (mm)
Weight (g)
Case Material
Cable Length (m)
36 x 30 x 19 12 60 AL-60 5


GUVx-T1xGS4-LA6 UV Radiometer 4 Dimensions

Size (W×L×H, mm3)
Window (mm)
Weight (g)
Case Material
Cable Length (m)
96 x 96 x 111 - 410 ABS -
* Panel Cutting Size : 92 × 92 mm2 (Tolerance : -0, + 0.5mm)


GUVx-T1xGS4-LA6 UV Radiometer 4 Absolute Maximum Ratings

Parameter
Value
Unit
Remark
Min.
Typ.
Max.
Operating Temperature
-30

85
°C
Sensor Probe
0

50 °C
Display
Working humidy
35

85
%RH

Power Supply
200
240
VAC
50/60 ㎐


GUVx-T1xGS4-LA6 UV Radiometer 4 Electro-Optical Characteristics (at 25°C)

Parameter
Value
Unit
Remark
Min.
Typ.
Max.
Detection Power Range
0

100 mW/cm2
Detection Range
GUVV-T10GS4-LA6
230
395 nm 10% of Max
GUVB-T11GS4-LA6
220
320 nm
GUVC-T10GS4-LA6
220
280 nm
GVBL-T12GS4-LA6
330
445 nm

GUVx-T1xGS4-LA6 UV Radiometer 4 Function
 1. Display : Relative Power (%), Accumulative Time (Hours), and Absolute Power (mW/cm2)
                   3 Color LED : Green LED (Over C-03), Yellow LED(C-04 ~ C-03), Red LED (Under C-04)
 2. Output : DC Current (4-20mA, 300 Ω max load), Relay (NC/NO, 250VAC 3A/30VDC 3A)
