Evaluation Board for 4 Temperature Sensors SMT172 - SMTAS04USBmini

• SMTAS04USB mini – Evaluation board for SMT172
• 4 channel temperature measurement system
• Smart Temperature Acquisition System
• based on the use of the Smartec temperature sensors SMT172
• SMT172 is a three terminal integrated temperature sensor

  • Model Number: SMTAS04USBmini
  • Data Sheet: Date Sheet File
Quantity:
- +

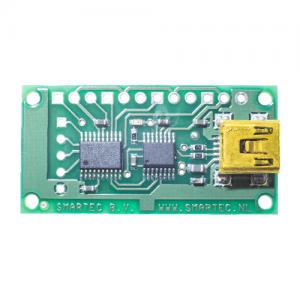

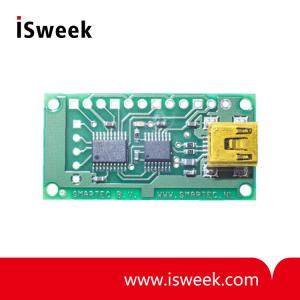

  • Evaluation Board for 4 Temperature Sensors SMT172
  • Evaluation Board for 4 Temperature Sensors SMT172
Mouse over image to zoom

Product Specification

SMTAS04USB mini – Evaluation board for SMT172 Introduction
This document describes a 4 channel temperature measurement system: The New Smart Temperature Acquisition System (SMTAS04usbmini). It is based on the use of the Smartec temperature sensors SMT172. The SMT172 is a three terminal integrated temperature sensor with a duty cycle output. Two terminals are used for the power supply of and the third terminal carries the output signal. The output signal of the sensor is a duty-cycle-modulated square-wave signal (see Figure 1).


SMTAS04USB mini – Evaluation board for SMT172 Ordering information

SMTAS04USBmini
Smartec interface board for 4 SMT temperature sensors and an USB output.
SMTAS08USBmini
Smartec interface board for 8 SMT temperature sensors and an USB output


SMT172-TO18
Smartec temperature sensor in TO18 encapsulation (metal can)
SMT172-TO92
Smartec temperature sensor in TO92 encapsulation (commercial)
SMT172-TO220
Smartec temperature sensor in TO220 encapsulation
SMT172-SOIC-8L
Smartec temperature sensor in SOIC8 encapsulation
SMT172-SOT223
Smartec temperature sensor in SOT223 encapsulation
SMT172-HEC
Smartec temperature sensor as small hybrid (2.5. x 8 mm)
