Precise Non-contact Infrared Temperature Sensor - PSC-SSS-LT

• Temperature Range:-50 to 975°C
• Spectral Response: 8 - 14µm
• Optics Type: Laser Accessory
• Min. Spot Size: 1.2 mm
• Response Time: 150 ms
• Power Supply: 8-36 V DC
• Environmental rating: IP 65 (NEMA-4)
• Relative humidity: 10 - 95%, non condensing

  • Model Number: PSC-SSS-LT
  • Data Sheet: Date Sheet File
Quantity:
- +

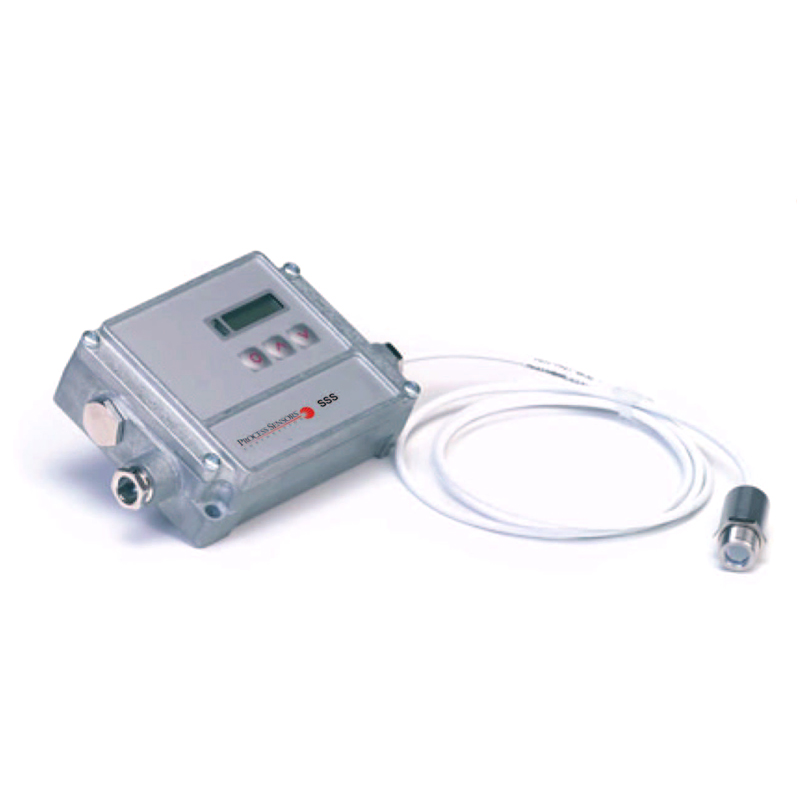

  • Precise Non-contact Infrared Temperature Sensor

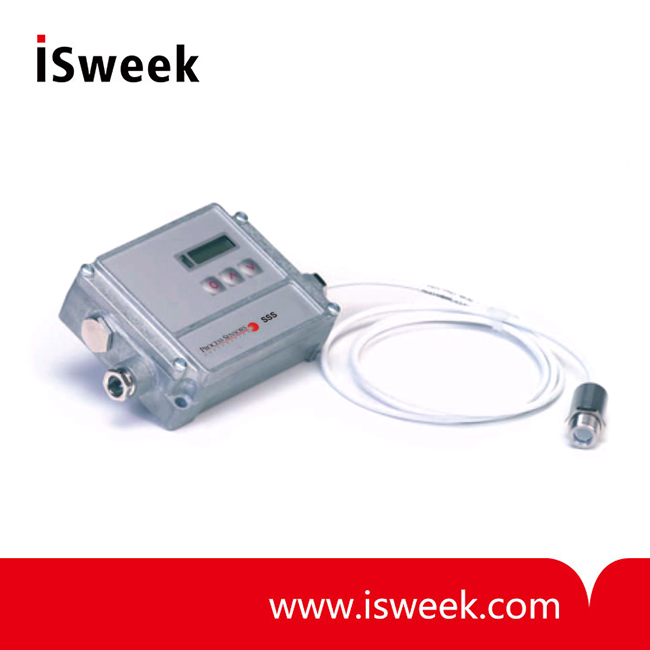

  • Precise Non-contact Infrared Temperature Sensor
Mouse over image to zoom

Product Specification

PSC-SSS (Smart Small Sensor)
Precise non-contact temperature measurement from -50°C to 975°C

PSC-SSS-LT Infrared Temperature Sensor Description
The PSC-SSS IR temperature sensor series is a highly versatile low cost solution for reliable temperature measurement. It features a temperature range of -50° to 1800°C which is fully scalable by an operator via programming keys, or by use of the included, no cost PSC Connect software. Other IR sensor parameter adjustments include peak picking, valley hold, average, and extended hold function with threshold and hysteresis.

The sensor head can be installed in higher ambient temperature, and a full line of rugged industrial accessories is available for its protection and optimum operation. Its small size facilitates temperature measurement in not easily accessible areas and simplifies integration into existing manufacturing systems. All PSC-SSS Sensors feature a choice of outputs including 4 to 20 mA, thermocouple, and linear voltage. Optional digital outputs include USB, RS-232, RS-485, CAN, Profibus DP and Ethernet. Programmable functional inputs for external emissivity adjustment, ambient temperature compensation and trigger reset of hold functions are provided.

PSC-SSS-LT Infrared Temperature Sensor Features
• One of the smallest infrared sensors worldwide with 22:1 optical resolution
• Rugged and usable up to 180°C ambient temperature without cooling
• Separate electronics with easy accessible programming keys and LCD backlit display
• Selectable analog output: 0/4-20 mA, 0-5 V, 0-10 V, thermocouple type K or J
• Optional USB, RS485, RS232 interface, relay outputs (2 x optically isolated), CAN-Bus, Profibus DP, Ethernet
• Installation of up to 32 sensing heads

PSC-SSS-LT Infrared Temperature Sensor Specifications

General Specifications
Environmental rating
IP 65 (NEMA-4)
Ambient temperature
sensing head: -20°C to 180°C (130°C at LT02)
electronics: 0°C to 85°C
Storage temperature
sensing head: -40 to 180°C (130°C at LT02)
electronics: -20°C to 85°C
Relative humidity
10 - 95%, non condensing
Vibration (sensor)
IEC 68-2-6: 3 G, 11-200 Hz, any axis
Shock (sensor)
IEC 68-2-27: 50 G, 11 ms, any axis
Weight
sensing head: 40 g
electronics: 420 g
Electrical Specifications
Outputs/analog
channel 1: 0/4 - 20 mA, 0-5/10 V, thermocouple J, K
channel 2: sensind head temperature
(-20°C - 180°C as 0-5 V or 0-10 V), alarm output
Output/alarm
24 V/50 mA (open collector)
Optional
relay: 2 x 60 V DC/42 V AC eff ; 0.4 A; optically isolated
Outputs/digital (optional)
USB, RS232, RS485 (optional), CAN-Bus, Profibus DP, Ethernet
Output impedances
mA max. 500Ω (with 8-36 V DC)
mV min. 100 kΩ load impedance thermocouple 20Ω
Inputs
programmable functional inputs for external emissivity adjustment,
ambient temperature compensation, trigger (reset of hold functions)
Cable length
1 m (standard), 3 m, 8 m, 15 m
Current draw
max. 100 mA
Power Supply
8-36 V DC
Measurement Specifications
Temperature range
(scalable via programming keys or software)
-50°C to 975°C (LT22)
-50°C to 600°C (LT15)
-50°C to 600°C (LT02)
Spectral range
8-14 μm
Optical resolution (90% energy)
22:1 (precision glass optics)
15:1 (precision glass optics)
2:1 (with fiat front window)
CF-lens (optional)
0.6 mm @ 10 mm (LT22)
0.8 mm @ 10 mm (LT15)
2.5 mm @ 23 mm (LT02)
System accuracy (at ambient temp. 23 ±5°C)
± 1% or ± 1°C
Repeatability (at ambient temp. 23 ±5°C)
± 0.5% or ± 0.5°C
Temperature resolution (display)
0.1°C
NETD
0.05 K(LT22/LT15)
0.1 K (LT02)
Response time
150 ms (95 %)
Emissivity/Gain
(adjustable via programming keys or software)
0.100 - 1.100
Transmissivity/Gain
(adjustable via programming keys or software)
0.100 - 1.100
Signal processing
(parameter adjustable via programming
keys or software, respectively)

peak hold, valley hold, average;
extended hold function with threshold and hysteresis
Software
PSCconnect
