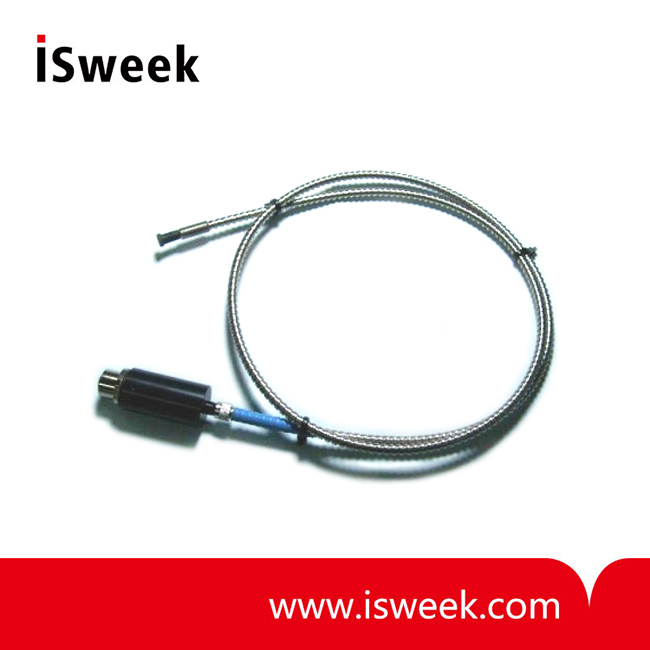

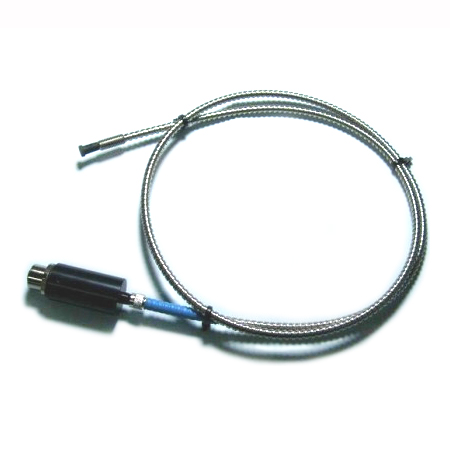

UV Sensor Probe - GUVx-T1xGC-I8LO1
- Single Supply Voltage, 3 wire 4-20mA Current Output
- High Temperature Environment (under 200°C)
- Power supply: 9~24 VDC
- Offset Current: 4 mA
- Output Current: 4~20mA
- Detection Range:
GUVV-T11GC-I8LO1: 230~395nm
GUVB-T12GC-I8LO1: 220~320nm
GUVC-T11GC-I8LO1: 220~280nm
- Quantity:
- - +
Product Specification
GUVx-T1xGC-I8LO1 UV Sensor Probe Features
- Single Supply Voltage, 3 wire 4-20 mA Current Output
- High Temperature Environment (under 200°C)
GUVx-T1xGC-I8LO1 UV Sensor Probe Applications
- UV Power Measure
- UV Lamp Monitoring
GUVx-T1xGC-I8LO1 UV Sensor Probe Case dimensions
LO Probe (mm) |
LO Probe Material |
Optical Fiber |
|||
Diameter |
Total |
Length (m) |
Core (mm) |
Material |
|
20 | 56 |
Al-60 |
1 | 1 |
SUS 304 |
GUVx-T1xGC-I8LO1 UV Sensor Probe Absolute Maximum Ratings
Absolute Maximum Ratings |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
Operating Temperature |
Optical Fiber |
|
|
200 |
°C |
|
LO Probe |
-30 |
|
85 |
°C |
|
GUVx-T1xGC-I8LO1 UV Sensor Probe Electro-Optical Characteristics (at 25°C)
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
Supply Voltage |
Vcc |
9 |
|
24 | VDC |
|
|
Offset Current |
IQ |
|
4 |
|
mA |
|
|
Detection Range |
GUVV-T11GC-I8LO1 |
λ |
230 |
|
395 | nm |
10% of Max |
GUVB-T12GC-I8LO1 |
λ |
220 |
|
320 |
nm |
||
GUVC-T11GC-I8LO1 |
λ |
220 |
|
280 |
nm |
||
Output Current |
Iout |
4 |
|
20 | V |
|
|
Detection Power Range |
P | 0 |
|
100 | mW/cm2 |
|
|
Response Time |
T |
|
10 |
|
ms |
|
* maximum detection range : 100mW/cm2 (default), 1000mW/cm2 (optional)
