A Powerful Wired Ultrasonic Anemometer - Ultrasonic Wired

• Wind Speed Range: 0 to 40 m/s
• Wind Speed Resolution: ±0.1 m/s
• Wind direction Range: 0 - 360°
• Wind direction Resolution: ±1
• Power: VCC 5V - 24V
• IP Code: NOT allow to be submerged fully or partially in water

Model Number: Ultrasonic Wired
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Ultrasonic Wired (Ultrasonic Anemometer) Description

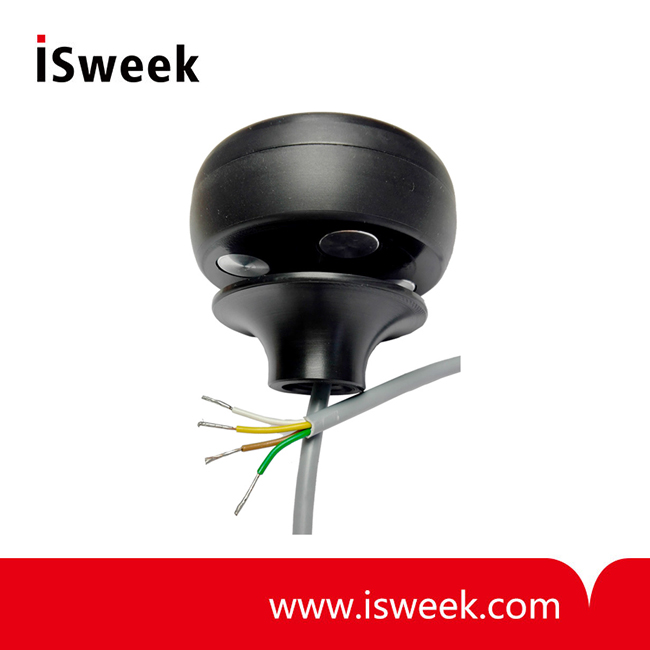

A powerful wired ultrasonic anemometer

Built with ultrasonic sensors, it will provides you one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.

Ultrasonic Wired (Ultrasonic Anemometer) Specifications

Wind Speed	Range: 0 to 40 m/s Resolution: ±0.1 m/s
Wind direction	Range: 0 - 360° Resolution: ±1
Sensors	Ultrasonic transducers (4x) Sample rate: 1, 4, 8 Hz Thermometer, Gyroscope, Accelerometer
Power	VCC 5V - 24V
Data output	Bluetooth 4.1 NMEA0183 (RS422, RS485), sentences selectables via Bluetooth Baud rate: 4800/38400 (8n1) bauds.
Firmware	Upgradable Current version: 0.44
IP Code	NOT allow to be submerged fully or partially in water
Dimensions	Diameter: 70 mm Height: 57 mm Cable: 1.5 meters
Weight	130 grams
