Ultrasonic Wind Speed Sensor - SONIC-ANEMO-DVC

Output rat: 2 Hz / 30 Hz measurement
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s (16 bits)
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1° (9 bits)
Power supply: 2.7 V to 35 V DC
Electrical consumption: 2.6 mA Avg. @ 12 V
Op. temp. without icing: -15° C to +55° C

  • Model Number: SONIC-ANEMO-DVC
  • Data Sheet: Date Sheet File
Quantity:
- +

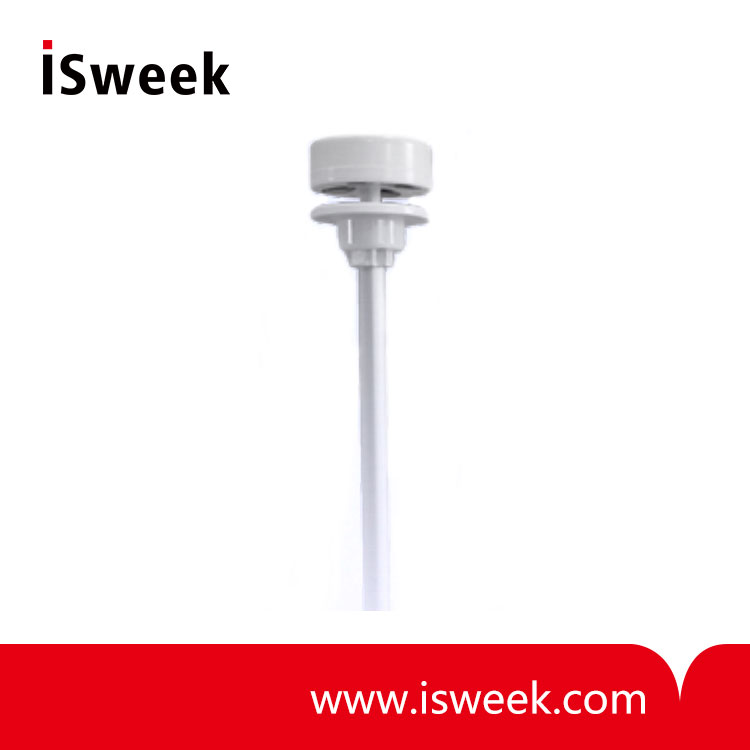

  • Ultrasonic Wind Speed Sensor
  • Ultrasonic Wind Speed Sensor
Mouse over image to zoom

Product Specification

SONIC-ANEMO-DVC Ultrasonic Wind Speed Sensor Description:

As Worldwide Premiere launch, a specific version of the CV7-V which connects directly to the wind sensor input on Davis instruments.

This sensor will allow the replacement of mechanical anemometers / wind vanes with no need of anything else but power supply.

It’s an exclusive and useful product for both, professionals and well-informed amateurs.


SONIC-ANEMO-DVC Ultrasonic Wind Speed Sensor Specification:

Output data format

WA: 25KΩ, 5V max; WS: Pulse open collector 10 mA max

Information transmited

Instant. W. Speed, Instant. W. Angle

Output rate

2 Hz / 30 Hz measurement

Wind module sensitivity

0.12 m/s

Wind module resolution

0.05 m/s (16 bits)

Wind module dynamic

0.12 to 40 m/s

Direction sensitivity

+/-1.5°

Direction resolution

1° (9 bits)

Power supply

2.7 V to 35 V DC

Electrical consumption

2.6 mA Avg. @ 12 V

Op. temp. without icing

-15° C to +55° C

Cable

5 m / UV proof

Connection

RJ11, 2 wires Power Supply

Weight of the head


Weight of unit assembly

200 gr with mounting part

Mounting

Vertical, 300 aluminium arm, Ø 16 mm


Options
These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.

420 AC
This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm

ANA-AC
This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
