Air Flow 1 Sensor (NC) - RMA-AF1-SEN

• Environment Condition Monitored: Air Flow
• Real-Time Recognition: Air Flow Stop/Start (normally closed)
• Power Supply: Monitoring Unit
• Sensor Cable Type: 2 Wire Sensor Cable
• Sensor Cable Length: 25'
• Maximum Sensor: Cable Length Approximately 900'

  • Model Number: RMA-AF1-SEN
  • Data Sheet: Date Sheet File
- +

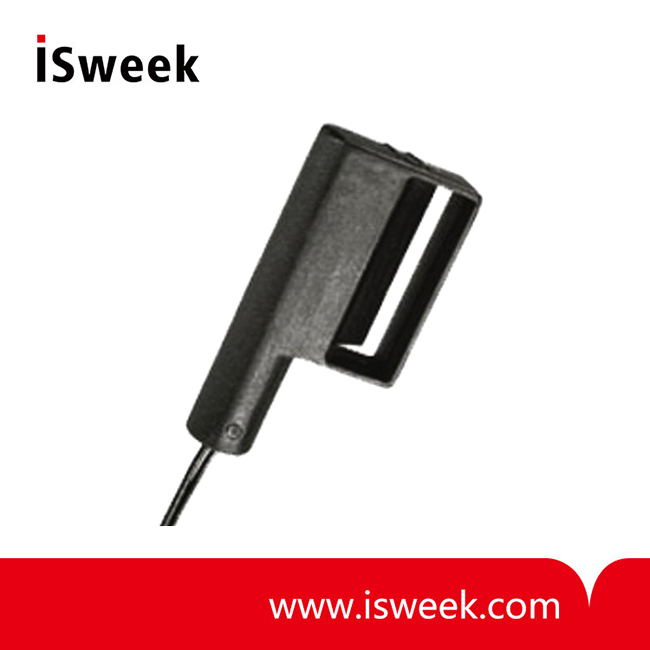

  • Air Flow 1 Sensor (NC)

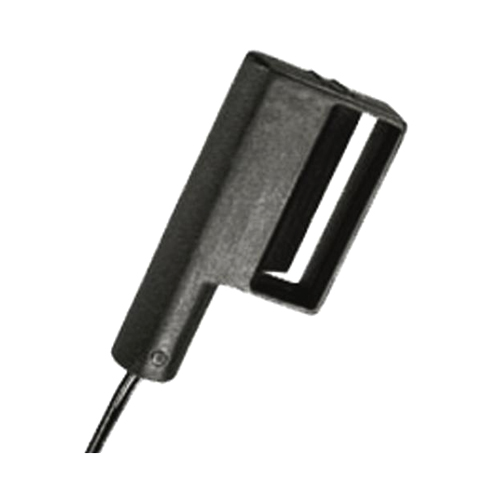

  • Air Flow 1 Sensor (NC)
Mouse over image to zoom

Product Specification

RMA-AF1-SEN Air Flow 1 Sensor (NC) Overview
Air Flow 1 Sensor (NC) provides real-time recognition of air flow stoppage. This Air Movement Sensor is normally closed and includes a mounting clip and clamp. Typical use is for measuring air flow in an HVAC duct, under a raised floor, or near a fan on a rack cabinet or important server.

This is an instant 'Plug & Play' sensor via one of the switch sensor channels on the back of any compatible Room Alert ID box. Cable distance can be extended from the standard 25' to approximately 900' by using standard speaker wire, twisted pair or any reliable low voltage 2-wire cable. This sensor is equivalent to the discontinued Stego Air Flow Sensor #01300.0.

RMA-AF1-SEN Air Flow 1 Sensor (NC) Features & Specification

Environment Condition Monitored

 Air Flow

Real-Time Recognition

 Air Flow Stop/Start (normally closed)

Power Supply

 Monitoring Unit

Sensor Cable Type

 2 Wire Sensor Cable

Sensor Cable Length


Maximum Sensor

 Cable Length Approximately 900'

Compatible Products

 Room Alert 32W, 32E, 26W, 26WO, 24E, 12E, 11E, 7E, 4E, 3E & 3 Wi-Fi
