Cabinet Mounted Conductivity Analyzer - DDG-230/DDG-330/DDG-430

• Digital temperature compensation
• 4 ~ 20mA current output
• Electrodialysis, reverse osmosis
• Ion exchange water system
• Cooling water control systems
• General industrial water on-line monitoring and control

Model Number: DDG-230/DDG-330/DDG-430
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Cabinet Mounted Conductivity Analyzer

This product is measured as the affordable industrial line conductivity and control instruments, digital temperature compensation, 4 ~ 20mA current output, suitable for electrodialysis, reverse osmosis and ion exchange water system, cooling water control systems and general industrial water on-line monitoring and control.

DDG-230/DDG-330/DDG-430 Conductivity Analyzer Technical Parameters

Model	DDG-230	DDG-330	DDG-430

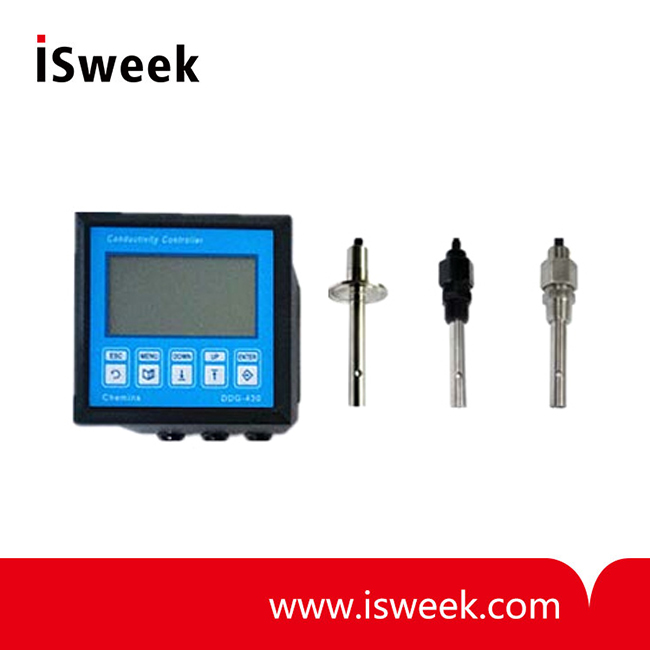

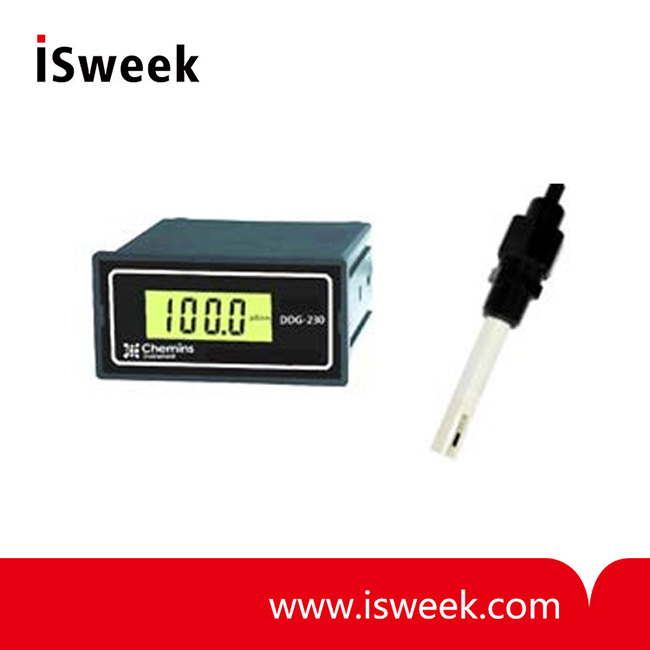

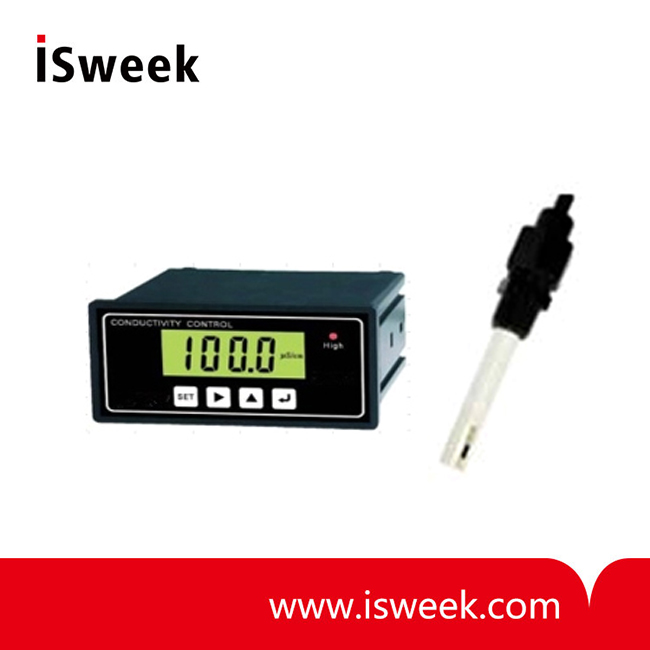

Product picture
Measuring range	0～20/200/2000uS/cm	0～20/200/2000uS/cm; 0～20/200/2000ppm; 0～20mS/cm	0～20000uS/cm
Accuracy	±1.5%F.S	±1.5%F.S	±1.0%F.S.
Current output	Optically isolated 4 ~ 2 0mA	Optically isolated 4 ~ 20mA	Optical isolation can migrate 4 ~ 20mA
Control output	/	Relay limit switch	Programmable upper and lower limits relay
Power supply	AC 110/220V±10% 50/60Hz	AC 110/220V±10% 50/60Hz	AC/220V±10% 50/60Hz
